Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT ENGINE MOUNTING INSULATOR

    Refer to REMOVAL [10/2022 - ]

  2. REMOVE FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 13

  3. REMOVE TRANSMISSION OIL(ATF WARMER) COOLER

    Refer to REMOVAL [10/2022 - ]

  4. SEPARATE ENGINE WIRE

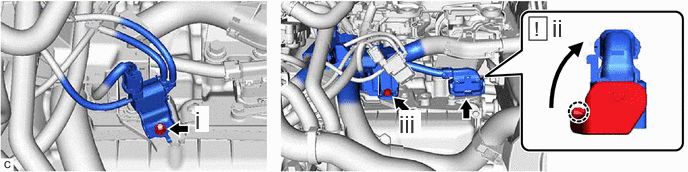

    1. GTY1128340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the nut and separate the vacuum hose sub-assembly.
      2. Disengage the claw, rotate the lever and disconnect the transmission wire connector.
      3. Remove the bolt and separate the engine wire.
  5. REMOVE OIL COOLER BRACKET

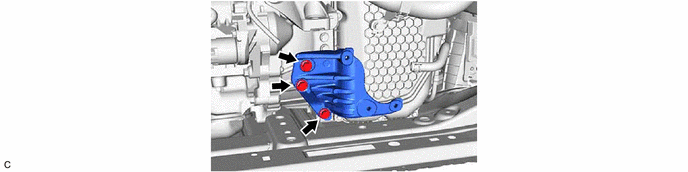

    1. GTY1062721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE OIL COOLER UNION SUB-ASSEMBLY

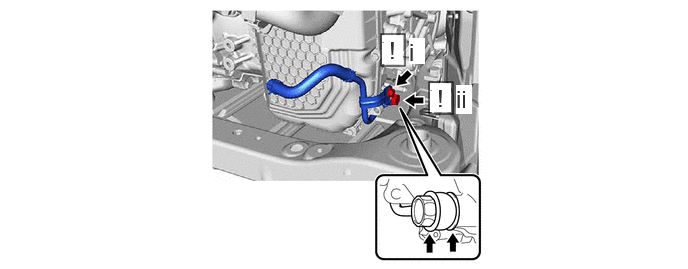

    1. GTY1062876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt to separate the oil cooler union sub-assembly bracket portion from the automatic transaxle case sub-assembly.
      2. Remove the oil cooler union bolt, 2 gaskets and oil cooler union sub-assembly from the automatic transaxle case sub-assembly.
  7. REMOVE OUTLET NO. 1 OIL COOLER HOSE

    HINT:

    Perform this procedure only when replacement of the outlet No. 1 oil cooler hose or oil cooler union sub-assembly are necessary.

    1. GTY1063142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE TRANSMISSION CASE SIDE COVER

    HINT:

    As the illustration shown is an example, the actual details may differ.

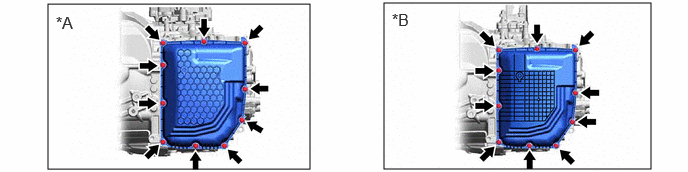

    1. GTY1127990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for AISIN Made *B for TMMWV Made
  9. REMOVE TRANSMISSION WIRE

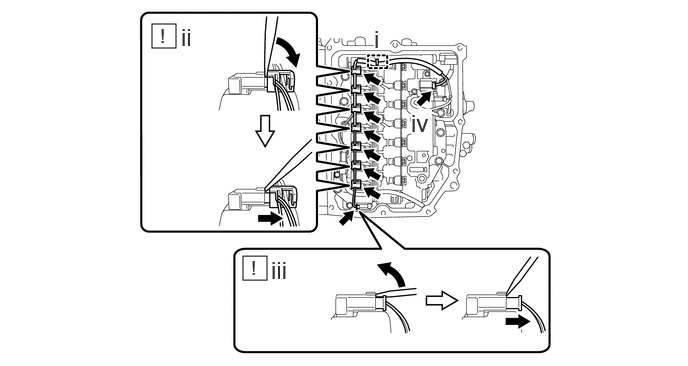

    1. GTY1060833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the clamp to disconnect the transmission wire from the solenoid lock plate.
      2. Using a screwdriver, disconnect the 7 solenoid valve connectors using the procedure shown in the illustration.
      3. Using a screwdriver, disconnect the solenoid valve connector using the procedure shown in the illustration.
      4. Disconnect the solenoid valve connector.
    2. GTY1061372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

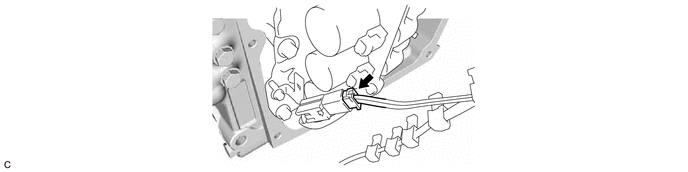

    3. GTY1061402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. GTY1061401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. GTY1062028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

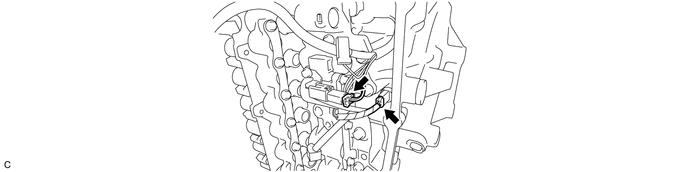

    6. GTY1063011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. GTY1062067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
