COMPONENTS (INSTALLATION)

Fig 1: Transmission Wire Installation Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	TRANSMISSION WIRE	82125J	See step 1	-	-

N.m (kgf/cm, ft.lbf): Specified torque

Toyota Genuine ATF WS

Fig 2: Transmission Wire Installation Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
2	TRANSMISSION CASE SIDE COVER (for AISIN Made)	35151F	See step 2	-	-
3	TRANSMISSION CASE SIDE COVER (for TMMWV Made)	35151F	See step 3	-	-

*A	for AISIN Made	*B	for TMMWV Made
*a	HINT: As the illustration shown is an example, the actual details may differ.	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent	*	Precoated part

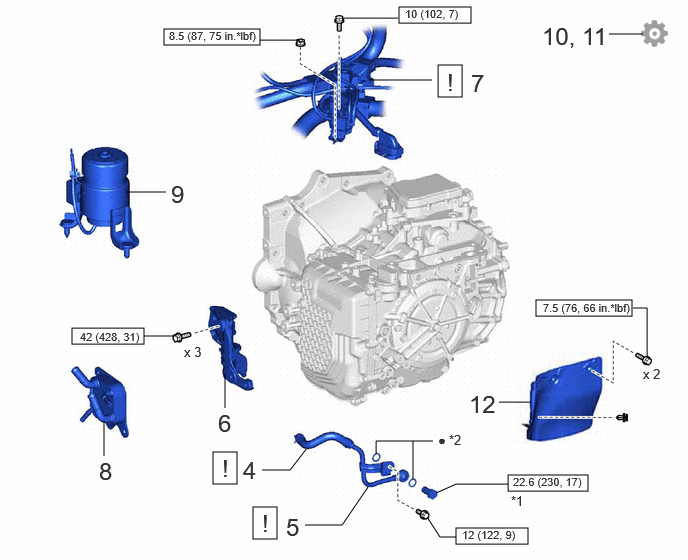

Fig 3: Transmission Wire Installation Components With Torque Specifications (3 Of 3)

Callout - Procedure		Part Name Code
4	OUTLET NO. 1 OIL COOLER HOSE	32942	See step 4	-	-
5	OIL COOLER UNION SUB-ASSEMBLY	32901C	See step 5	-	-
6	OIL COOLER BRACKET	32913	-	-	-
7	ENGINE WIRE	82121	See step 7	-	-
8	TRANSMISSION OIL COOLER	33493A	-	-	-
9	FRONT ENGINE MOUNTING INSULATOR	12361	-	-	-
10	ADJUST AUTOMATIC TRANSAXLE FLUID	-	-	-	See step 10
11	INSPECT FOR AUTOMATIC TRANSAXLE FLUID LEAK	-	-	-	See step 11
12	FRONT FENDER APRON SEAL LH	53737B	-	-	-

*1	OIL COOLER UNION BOLT	*2	GASKET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
