Disassembly [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

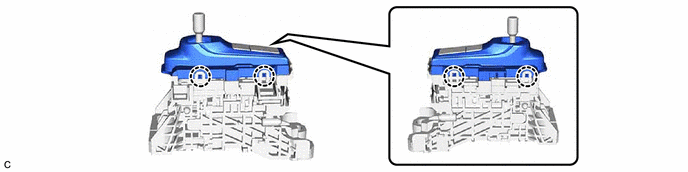

  1. REMOVE POSITION INDICATOR HOUSING
    1. GTY1123792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

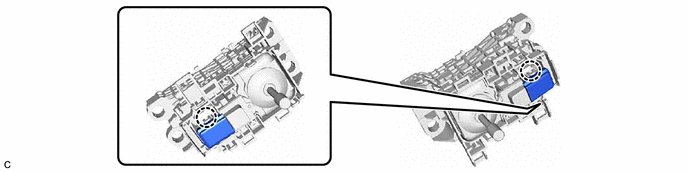

  2. REMOVE CONTROL POSITION INDICATOR PLATE
    1. GTY1123793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

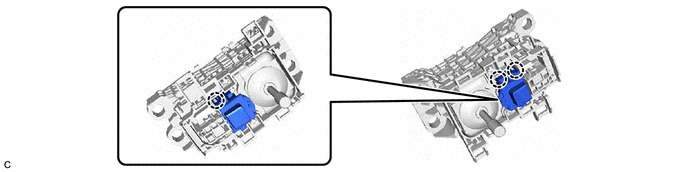

  3. REMOVE TRANSMISSION PARKING SWITCH KNOB
    1. GTY1123806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
