Installation [10/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

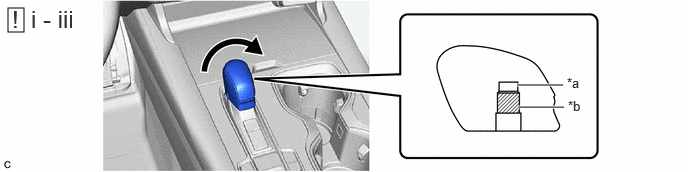

*a Non-threaded Part *b Threaded Part - Turn the shift lever knob sub-assembly clockwise until it cannot be turned easily.NOTE:
The shift lever knob sub-assembly will become difficult to turn when the transmission floor shift assembly contacts the non-threaded part of the shift lever knob sub-assembly.
- Turn the shift lever knob sub-assembly clockwise an additional 360° or more to install it as shown in the illustration.
- Tighten the shift lever knob sub-assembly until it is aligned with the longitudinal direction of the vehicle.NOTE:
- Make sure to only turn the shift lever knob sub-assembly clockwise when adjusting the installation position.
- After installing the shift lever knob sub-assembly, move the shift lever to each shift position and confirm that the shift lever knob sub-assembly does not contact the position indicator housing.
- Turn the shift lever knob sub-assembly clockwise until it cannot be turned easily.
