Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

SECURE VEHICLE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fully apply the parking brake and chock a wheel.
WARNING:
- Make sure to apply the parking brake and chock a wheel before performing this procedure.
- If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 1
REMOVE INLET AIR CLEANER ASSEMBLY
Refer to PROCEDURE - Step 28
REMOVE AIR CLEANER ASSEMBLY
Refer to PROCEDURE - Step 29

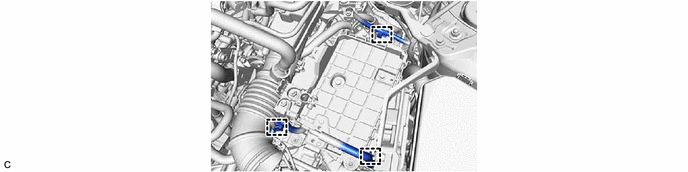

REMOVE BATTERY
Refer to REMOVAL [10/2022 - ]

DISCONNECT WIRE HARNESS

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

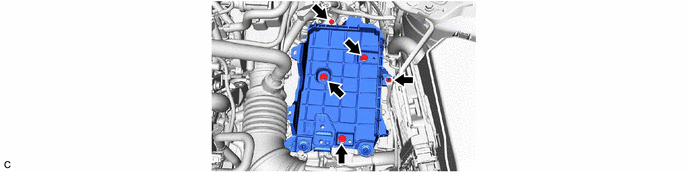

REMOVE BATTERY CLAMP SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

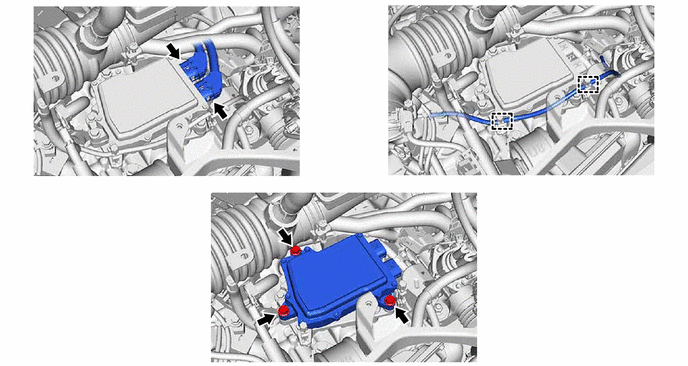

REMOVE SHIFT CONTROL ACTUATOR ASSEMBLY

NOTE:

When disconnecting a wire harness of any component connected to the supply power of the integrated capacitor (integration control supply) or when removing the integrated capacitor (integration control supply), make sure to wait 5 minutes or more after turning the ignition switch off for self-diagnosis to complete and the voltage of the integrated capacitor (integration control supply) to discharge.

Do not rotate the spline part (*a) of the shift control actuator assembly.
