Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 9

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 10

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 11

  4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 12

  5. REMOVE FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 13

  6. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  7. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 28

  8. REMOVE AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 29

  9. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 4

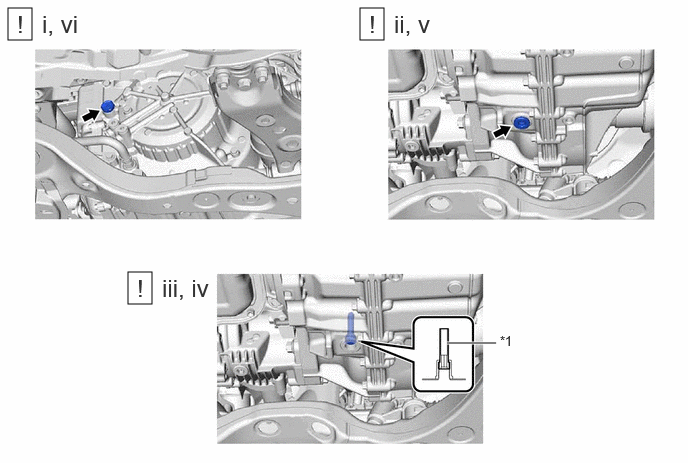

  10. DRAIN AUTOMATIC TRANSAXLE FLUID
    1. GTY1061635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Transmission Oil Filler Tube - -
      1. Remove the refill plug and gasket from the automatic transaxle case sub-assembly.
      2. Using a 10 mm hexagon socket wrench, remove the overflow plug and gasket from the transaxle housing.
      3. Using a 6 mm hexagon socket wrench, remove the No. 1 transmission oil filler tube from the transaxle housing and drain the automatic transaxle fluid.
      4. Using a 6 mm hexagon socket wrench, install the No. 1 transmission oil filler tube to the transaxle housing.

        Torque: 1.7 N.m (17 kgf/cm, 15 in.lbf)

      5. Using a 10 mm hexagon socket wrench, temporarily install the gasket and overflow plug to the transaxle housing.

        HINT:

        Reuse the old gasket as the overflow plug will be removed again to adjust the automatic transaxle fluid level.

      6. Temporarily install the gasket and refill plug to avoid automatic transaxle fluid spillage.

        HINT:

        Reuse the old gasket as the refill plug will be removed again to adjust the automatic transaxle fluid level.

  11. SEPARATE ENGINE WIRE
    1. GTY1062736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

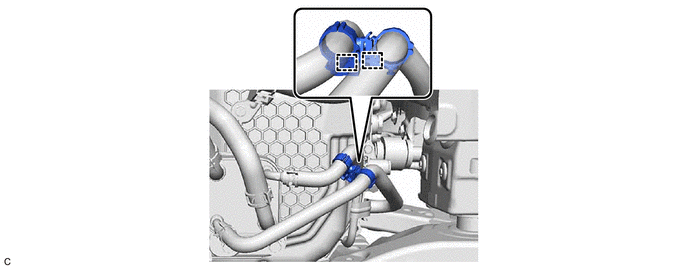

  12. REMOVE NO. 1 AUTOMATIC TRANSMISSION OIL COOLER TUBE CLAMP
    1. GTY1062708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

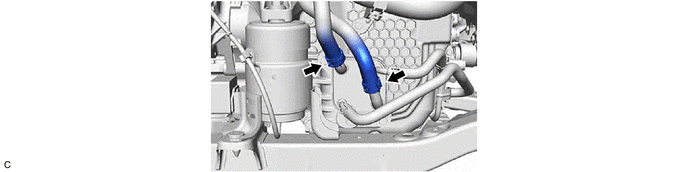

  13. DISCONNECT WATER BY-PASS HOSE ASSEMBLY
    HINT:
    Use a container to catch any coolant which flows out of the water by-pass hose assembly and transmission oil cooler.
    1. GTY1063135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

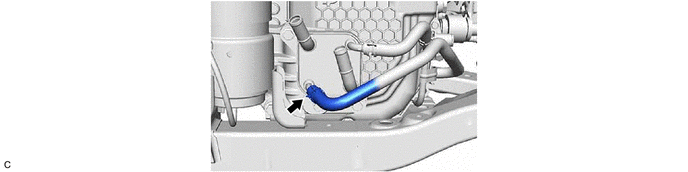

  14. DISCONNECT INLET NO. 1 OIL COOLER HOSE
    HINT:
    Use a container to catch any automatic transaxle fluid which flows out of the inlet No. 1 oil cooler hose and transmission oil cooler.
    1. GTY1062710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

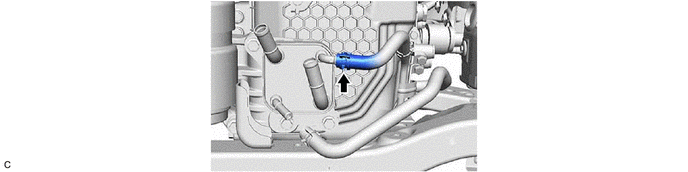

  15. DISCONNECT OUTLET NO. 1 OIL COOLER HOSE
    HINT:
    Use a container to catch any automatic transaxle fluid which flows out of the outlet No. 1 oil cooler hose and transmission oil cooler.
    1. GTY1062700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

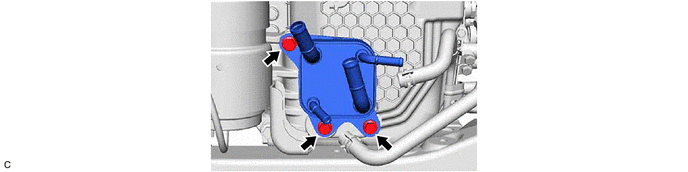

  16. REMOVE TRANSMISSION OIL COOLER
    HINT:
    Use a container to catch any coolant and automatic transaxle fluid which flow out of the transmission oil cooler.
    1. GTY1062701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
