Operation Method [10/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
- SECURE VEHICLE
- Fully apply the parking brake and chock a wheel.
- REMOVE SHIFT CONTROL ACTUATOR ASSEMBLY
Refer to REMOVAL [10/2022 - ]
- MANUAL PARKING LOCK RELEASE

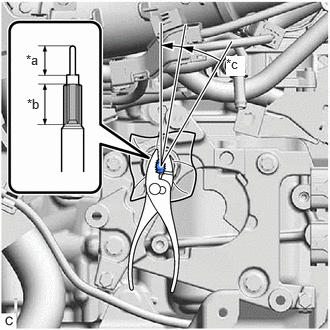

- Using a pair of pliers, grip the spline portion (*b) of the parking lock shaft that has been wrapped with a cloth or other material and rotate it 2 notches in the direction shown by the arrow in the illustration to release the parking lock.
*a 2-flats Portion of Parking Lock Shaft *b Spline Portion of Parking Lock Shaft *c Rotate 2 Notches NOTE:- Do not grip the 2-flats portion (*a) of the parking lock shaft.
- Make sure to use a cloth or other material to prevent damage to the spline portion (*b) of the parking lock shaft.
- Using a pair of pliers, grip the spline portion (*b) of the parking lock shaft that has been wrapped with a cloth or other material and rotate it 2 notches in the direction shown by the arrow in the illustration to release the parking lock.
- PARKING LOCK

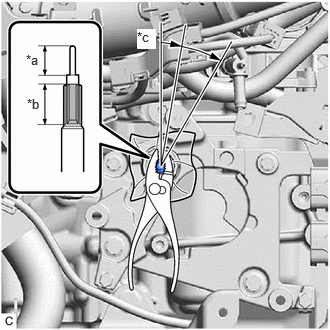

- Using a pair of pliers, grip the spline portion (*b) of the parking lock shaft that has been wrapped with a cloth or other material and rotate it 2 notches in the direction shown by the arrow in the illustration to apply the parking lock.
*a 2-flats Portion of Parking Lock Shaft *b Spline Portion of Parking Lock Shaft *c Rotate 2 Notches NOTE:- Do not grip the 2-flats portion (*a) of the parking lock shaft.
- Make sure to use a cloth or other material to prevent damage to the spline portion (*b) of the parking lock shaft.
- Using a pair of pliers, grip the spline portion (*b) of the parking lock shaft that has been wrapped with a cloth or other material and rotate it 2 notches in the direction shown by the arrow in the illustration to apply the parking lock.
