Components [10/2022 - ]

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

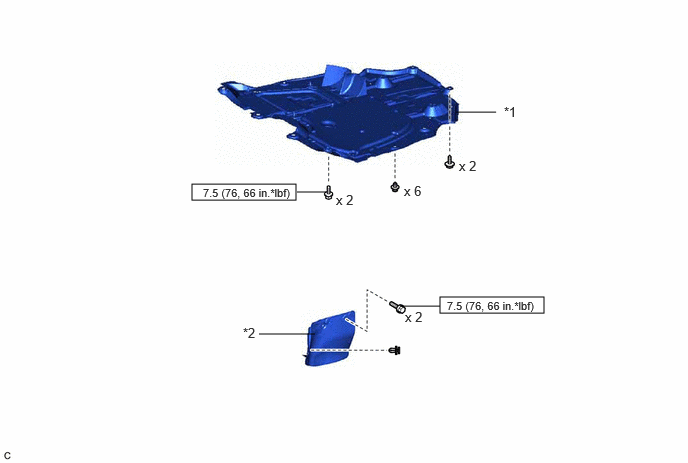

Fig 1: Automatic Transaxle Fluid Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 2 ENGINE UNDER COVER ASSEMBLY	*2	FRONT FENDER APRON SEAL LH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

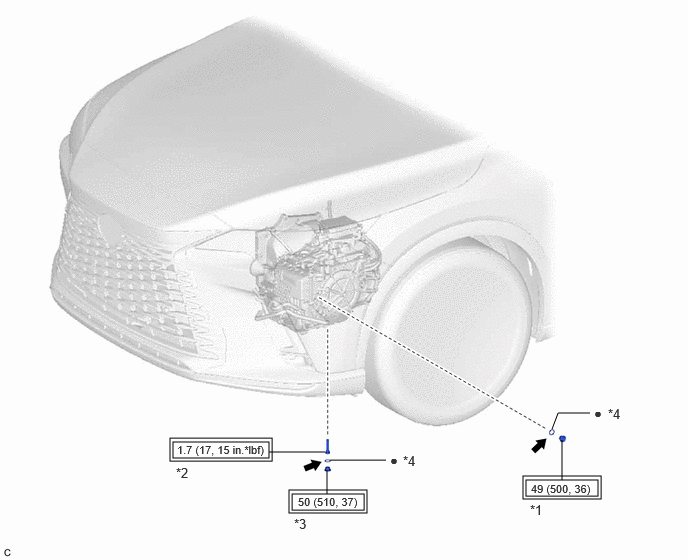

Fig 2: Automatic Transaxle Fluid Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	REFILL PLUG	*2	NO. 1 TRANSMISSION OIL FILLER TUBE
*3	OVERFLOW PLUG	*4	GASKET
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
	Toyota Genuine ATF WS	-	-
