On-Vehicle Inspection [10/2022 - ]: Procedure

1. Fully apply the parking brake and chock a wheel.
   WARNING:

   • Make sure to apply the parking brake and chock a wheel before performing this procedure.
   • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pre-procedure1

• Remove the shift control actuator assembly.

  HINT:

  Refer to REMOVAL [10/2022 - ]

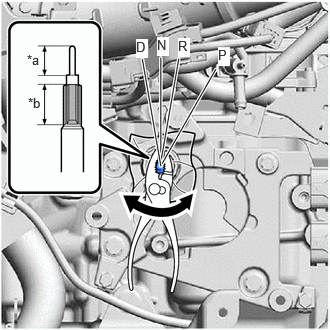

• Using a pair of pliers, grip the spline portion (*b) of the parking lock shaft that has been wrapped with a cloth or other material and rotate it in the direction shown by the arrow in the illustration and check that it is not stuck or spinning.

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  *a	2-flats Portion of Parking Lock Shaft
  *b	Spline Portion of Parking Lock Shaft

  Standard

  The parking lock shaft is not stuck, and moves reasonably smoothly to each shift position.

  NOTE:

  • Do not grip the 2-flats portion (*a) of the parking lock shaft.
  • Make sure to use a cloth or other material to prevent damage to the spline portion(*b) of the spline of the parking lock shaft.
  • After performing the inspection, turn the parking lock shaft clockwise until it stops to engage the parking lock.

Post-procedure1

• Install the shift control actuator assembly.

  HINT:

  Refer to INSTALLATION [10/2022 - ]
