The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Auxiliary battery terminal is disconnected/reconnected	Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly	Parking Support Brake System*1	Refer to INITIALIZATION [10/2022 - ]
Replacement of ECM	Perform Vehicle Identification Number (VIN) registration	DTC is output	Refer to REGISTRATION [10/2022 - ]
	ECU configuration	-	Refer to ECU CONFIGURATION [10/2022 - ]
	Update ECU security key	Vehicle Control History (RoB) are stored	Refer to UPDATE ECU SECURITY KEY [10/2022 - ]
Replacement of hybrid motor control inverter assembly	Resolver learning	DTCs are stored Slight vibration at a vehicle speed of 5 km/h (3 mph) or less Shock or vibration during acceleration	Refer to UTILITY [10/2022 - ]
Replacement of hybrid vehicle transaxle assembly	Resolver learning Initialize resolver		Refer to UTILITY [10/2022 - ]
Tires	Initialization23 Tire Position Identification23	Tire Pressure Warning System	Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below Refer to WORK PROCEDURE [08/2023 - ]
	Rear television camera assembly optical axis (Back camera position setting)*5	Parking Assist Monitor System	Refer to CALIBRATION [10/2022 - ]
	Parking assist ECU initialization*5	Panoramic View Monitor System	Refer to CALIBRATION [10/2022 - ]
	Parking assist ECU initialization*5	Advanced Park	Refer to CALIBRATION [10/2022 - ]
Replacement of engine assembly Gas leak from exhaust system is repaired	Inspection after repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [10/2022 - ]
Replacement of front bumper assembly*4	Front television camera view adjustment	Panoramic View Monitor System	Refer to CALIBRATION [10/2022 - ]
Replacement of front bumper assembly*4	Front television camera view adjustment	Advanced Park	Refer to CALIBRATION [10/2022 - ]
Suspension parts	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	Refer to CALIBRATION [10/2022 - ]
	Parking assist ECU initialization	Panoramic View Monitor System	Refer to CALIBRATION [10/2022 - ]
	Parking assist ECU initialization	Advanced Park	Refer to CALIBRATION [10/2022 - ]
	Perform headlight ECU sub-assembly LH initialization	Lighting System (w/ Automatic Headlight Beam Level Control System)	Refer to INITIALIZATION [10/2022 - ]
Front wheel alignment adjustment	Perform "Calibration"	DTCs are stored ABS warning light illuminates Slip indicator light illuminates Electronically controlled brake system does not operate correctly	Refer to RESET MEMORY / CALIBRATION [10/2022 - ]

*1: When "[Parking Support Brake System icon] System Stopped See Owner's Manual" is displayed on the multi-information display.

*2: Also necessary after performing a tire rotation.

*3: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

*4: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

*5: The vehicle height changes because of tire replacement.

WARNING:

The engine assembly with transaxle is very heavy. Be sure to follow the procedure described in the appropriate service information , or the engine lifter may suddenly drop or the engine assembly with transaxle may fall off the engine lifter.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	An Object Exceeding Weight Limit of Engine Lifter

To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

When disconnecting a wire harness of any component connected to the supply power of the integrated capacitor (integration control supply) or when removing the integrated capacitor (integration control supply), make sure to wait 5 minutes or more after turning the ignition switch off for self-diagnosis to complete and the voltage of the integrated capacitor (integration control supply) to discharge.
To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
Refer to INSPECTION MODE PROCEDURE [10/2022 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Front Camera System	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [10/2022 - ]
Adaptive High Beam System
Lighting System (w/ Automatic Headlight Beam Level Control System)

LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Back Door System	Reset back door close position	Refer to INITIALIZATION [10/2022 - ]
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

COMPONENTS (REMOVAL)

Fig 1: Engine Assembly (For HEV Model) Removal Components [10/2024 - ] (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	PRECAUTION	-	See step 1	-	-
2	RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM	-	-	See step 2	-
3	DISCHARGE FUEL SYSTEM PRESSURE	-	See step 3	-	-
4	ALIGN FRONT WHEELS FACING STRAIGHT AHEAD	-	See step 4	-	-
5	SECURE STEERING WHEEL	-	See step 5	-	-
6	FRONT WHEELS	-	-	-	-
7	FRONT WHEEL OPENING EXTENSION PAD LH	53852B	-	-	-
8	FRONT WHEEL OPENING EXTENSION PAD RH	53851D	-	-	-
9	NO. 1 ENGINE UNDER COVER	51441	-	-	-
10	NO. 2 ENGINE UNDER COVER ASSEMBLY	51420	-	-	-
11	FRONT FENDER APRON SEAL LH	53737B	-	-	-
12	FRONT FENDER APRON SEAL RH	53736	-	-	-

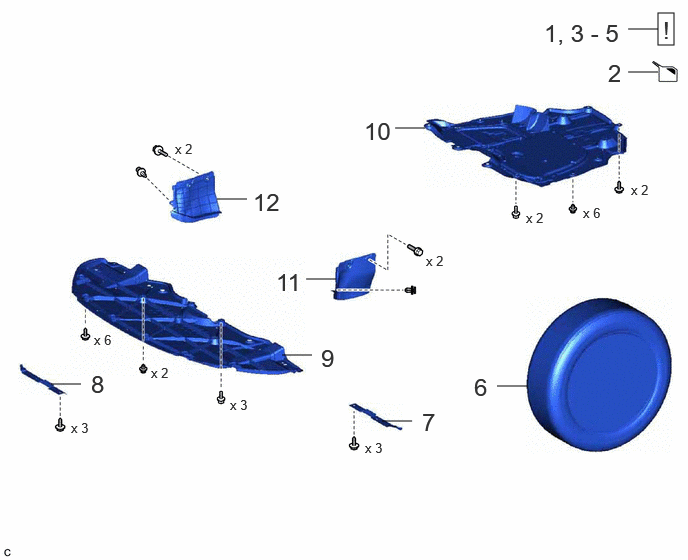

Fig 2: Engine Assembly (For HEV Model) Removal Components [10/2024 - ] (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
13	FRONT BUMPER ASSEMBLY	-	-	-	-
14	FRONT BUMPER LOWER ABSORBER	52618	-	-	-
15	NO. 2 FRONT BUMPER REINFORCEMENT	52132A	-	-	-

Fig 3: Engine Assembly (For HEV Model) Removal Components [10/2024 - ] (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
16	DRAIN ENGINE COOLANT (for Engine)	-	-	See step 16	-
17	DRAIN ENGINE OIL	-	-	See step 17	-
18	DRAIN HYBRID TRANSAXLE FLUID	-	-	See step 18	-
19	NO. 1 ENGINE COVER SUB-ASSEMBLY	12601B	See step 19	-	-
20	HYBRID MOTOR CONTROL INVERTER ASSEMBLY	G92A0	-	-	-
21	FUEL VAPOR FEED HOSE ASSEMBLY	23820	-	-	-
22	OUTLET HEATER WATER HOSE	87246	See step 22	-	-
23	INLET HEATER WATER HOSE	87245	See step 23	-	-
24	FUEL TUBE SUB-ASSEMBLY	23901	See step 24	-	-
25	NO. 1 RADIATOR HOSE	16571C	-	-	-
26	NO. 2 RADIATOR HOSE	16572D	-	-	-
27	SUCTION HOSE SUB-ASSEMBLY	88704	See step 27	-	-
28	DISCHARGE HOSE SUB-ASSEMBLY	88703	See step 28	-	-
29	WIRE HARNESS	-	See step 29	-	-
30	NO. 5 INVERTER COOLING HOSE	G9229A	-	-	-
31	NO. 5 WATER BY-PASS HOSE	16282F	-	-	-
32	STEERING INTERMEDIATE SHAFT ASSEMBLY	45220	See step 32	-	-

*1	NO. 1 RELAY BLOCK COVER	*2	NO. 1 FUEL PIPE CLAMP
•	Non-reusable part	-	-

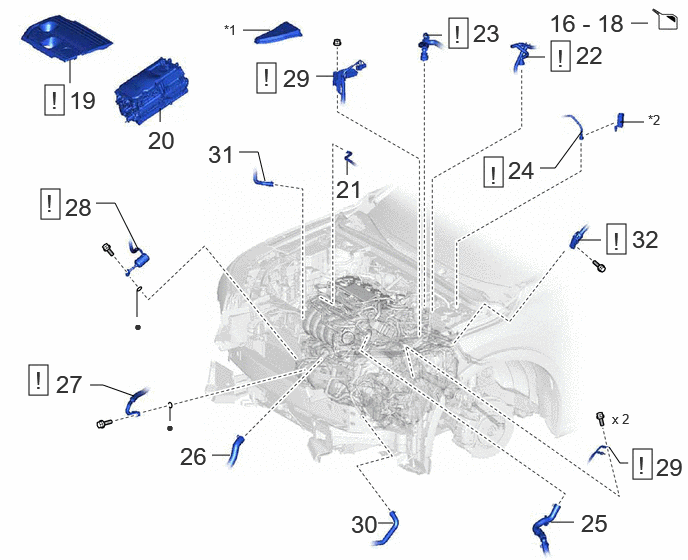

Fig 4: Engine Assembly (For HEV Model) Removal Components [10/2024 - ] (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
33	FRONT FLOOR COVER LH	58166A	See step 33	-	-
34	FRONT FLOOR COVER RH	58165C	See step 34	-	-

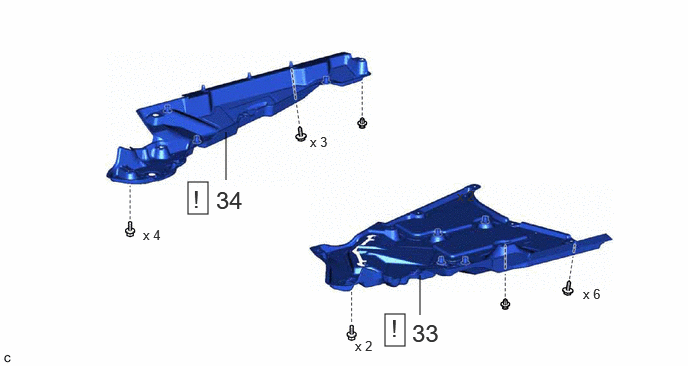

Fig 5: Engine Assembly (For HEV Model) Removal Components [10/2024 - ] (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
35	FRONT EXHAUST PIPE ASSEMBLY	17410	See step 35	-	-

•

Non-reusable part

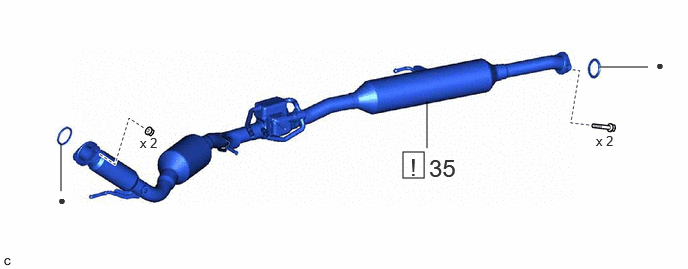

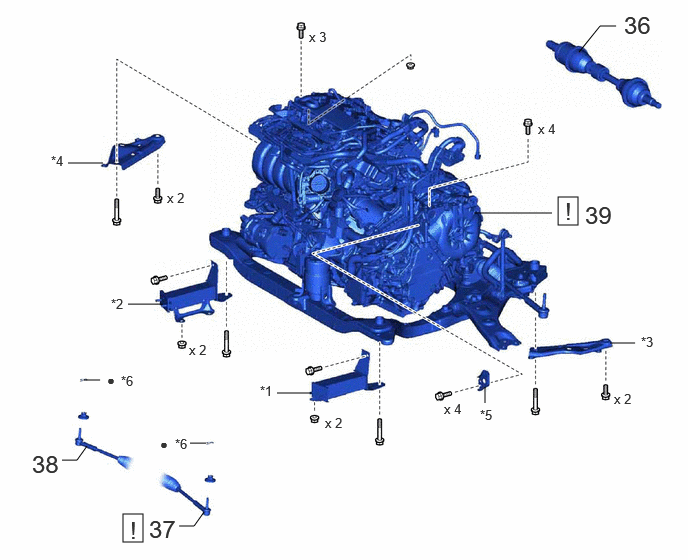

Fig 6: Engine Assembly (For HEV Model) Removal Components [10/2024 - ] (6 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
36	FRONT DRIVE SHAFT ASSEMBLY	-	-	-	-
37	TIE ROD ASSEMBLY LH	45470	See step 37	-	-
38	TIE ROD ASSEMBLY RH	45460	-	-	-
39	ENGINE ASSEMBLY WITH TRANSAXLE	-	See step 39	-	-

*1	FRONT BUMPER EXTENSION SUB-ASSEMBLY LH	*2	FRONT BUMPER EXTENSION SUB-ASSEMBLY RH
*3	FRONT SUSPENSION MEMBER BRACE REAR LH	*4	FRONT SUSPENSION MEMBER BRACE REAR RH
*5	ENGINE MOUNTING STAY LH	*6	COTTER PIN
•	Non-reusable part	-	-

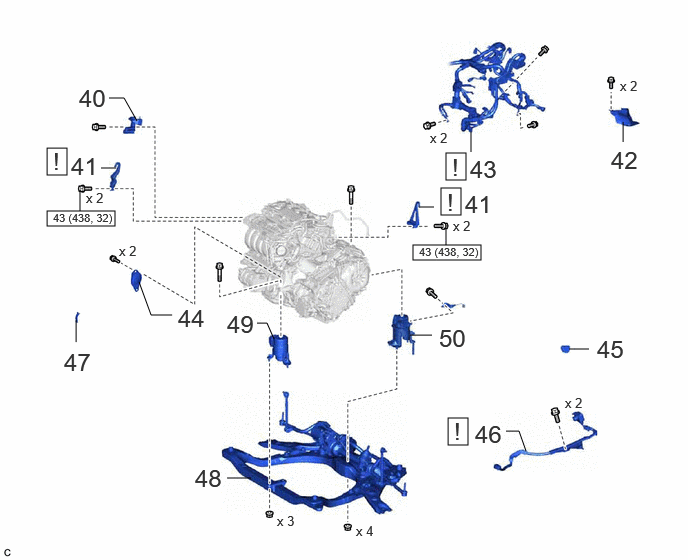

Fig 7: Engine Assembly (For HEV Model) Removal Components With Torque Specifications [10/2024 - ] (7 Of 9)

Callout - Procedure		Part Name Code
40	FUEL DELIVERY GUARD	23825A	-	-	-
41	INSTALL ENGINE HANGERS	-	See step 41	-	-
42	STEERING GEAR HEAT INSULATOR	45319	-	-	-
43	DISCONNECT ENGINE WIRE	82121	See step 43	-	-
44	STARTER HOLE INSULATOR	28193	-	-	-
45	FLYWHEEL HOUSING UNDER COVER	11361J	-	-	-
46	HV AIR CONDITIONING WIRE	821H2	See step 46	-	-
47	FLYWHEEL HOUSING SIDE COVER	11363A	-	-	-
48	FRONT FRAME ASSEMBLY	51100G	-	-	-
49	FRONT ENGINE MOUNTING INSULATOR	12361A	-	-	-
50	REAR ENGINE MOUNTING INSULATOR	12371A	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque

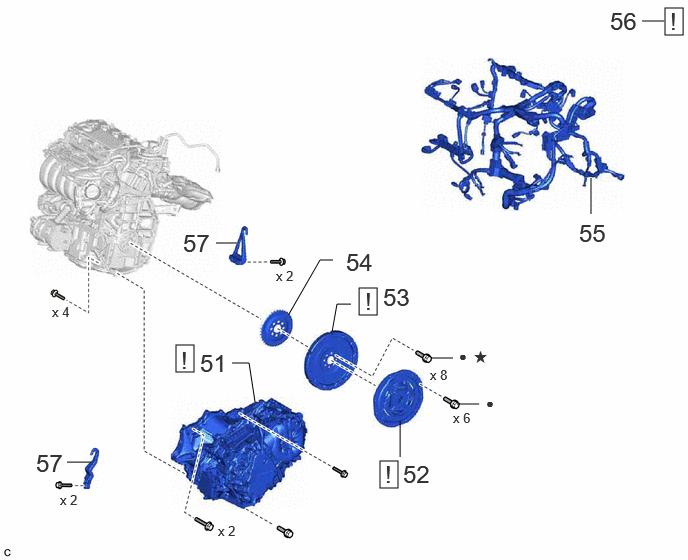

Fig 8: Engine Assembly (For HEV Model) Removal Components [10/2024 - ] (8 Of 9)

Procedure		Part Name Code
51	HYBRID VEHICLE TRANSAXLE ASSEMBLY	30900	See step 51	-	-
52	TRANSMISSION INPUT DAMPER ASSEMBLY	31270	See step 52	-	-
53	FLYWHEEL SUB-ASSEMBLY	13405	See step 53	-	-
54	NO. 1 CRANKSHAFT POSITION SENSOR PLATE	19315	-	-	-
55	REMOVE ENGINE WIRE	82121	-	-	-
56	INSTALL ENGINE ASSEMBLY TO ENGINE STAND	-	See step 56	-	-
57	REMOVE ENGINE HANGERS	-	-	-	-

•

Non-reusable part

Precoated part

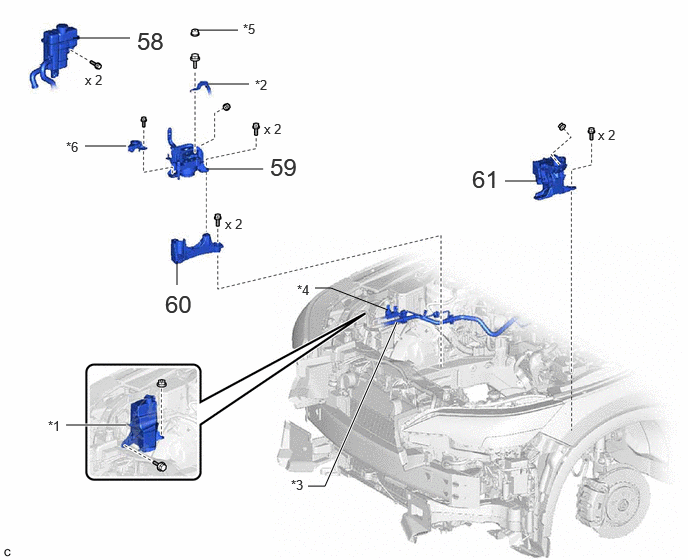

Fig 9: Engine Assembly (For HEV Model) Removal Components [10/2024 - ] (9 Of 9)

Procedure		Part Name Code
58	INVERTER RESERVE TANK ASSEMBLY	G910GB	-	-	-
59	ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH	12305	-	-	-
60	ENGINE MOUNTING SPACER	12341	-	-	-
61	ENGINE MOUNTING INSULATOR SUB-ASSEMBLY LH	12306	See step 61	-	-

*1	RADIATOR RESERVE TANK ASSEMBLY	*2	NO. 2 EARTH WIRE
*3	SUCTION PIPE SUB-ASSEMBLY	*4	AIR CONDITIONING TUBE ASSEMBLY
*5	EARTH BOLT CAP	*6	NO. 1 INVERTER RESERVE TANK BRACKET
