On-Vehicle Inspection [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT INTAKE SYSTEM
    WARNING:

    To prevent injury due to contact with an operating cooling fan, keep your hands and clothing away from the cooling fans when working in the engine compartment with the engine running or the ignition switch ON.

    GTY579837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

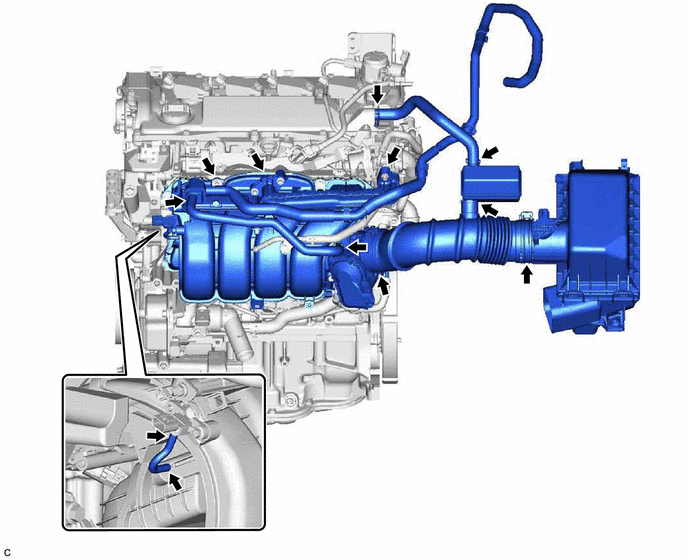

    1. Check that there are no vacuum leaks at the points shown in the illustration.

      HINT:

      Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.

      Refer to INITIALIZATION [10/2022 - ]

      GTY1131964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. PERFORM INITIALIZATION
    1. Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.

      HINT:

      Refer to INITIALIZATION [10/2022 - ]
