Parts Location [08/2023 - ]: Illustration
WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.

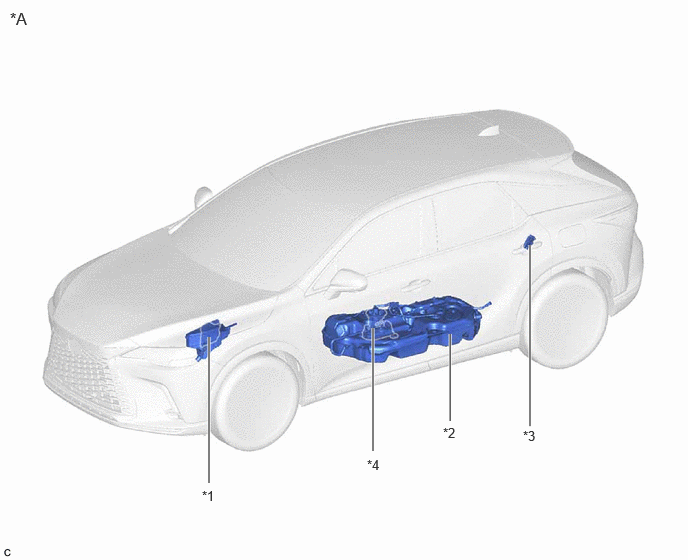

| *A | for THS-HEV Model | - | - |
| *1 | ECM | *2 | FUEL TANK ASSEMBLY |
| *3 | FUEL PUMP CONTROL ECU | *4 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL PUMP (for Low Pressure) - FUEL SENDER GAUGE ASSEMBLY - FUEL MAIN VALVE ASSEMBLY |
| *A | for PHEV Model | - | - |
| *1 | ECM | *2 | FUEL TANK ASSEMBLY |
| *3 | FUEL PUMP CONTROL ECU | *4 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL PUMP (for Low Pressure) - FUEL SENDER GAUGE ASSEMBLY - FUEL MAIN VALVE ASSEMBLY |
