Removal [10/2022 - 08/2023]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 4

  2. REMOVE INVERTER WITH CONVERTER ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  3. DISCONNECT NO. 3 WATER BY-PASS HOSE
    1. GTY1078879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT NO. 4 WATER BY-PASS HOSE
    1. GTY1077837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE EGR COOLER ASSEMBLY

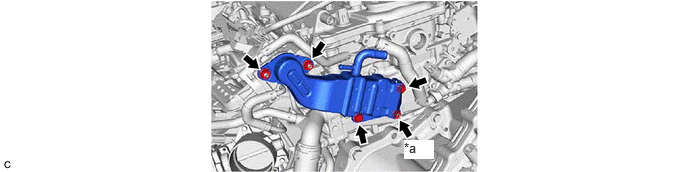

    1. GTY1132390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt or Nut - -
  6. REMOVE EGR VALVE GASKET
    1. GTY1077786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 1 EGR COOLER GASKET
    1. GTY1077792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
