Removal [08/2023 - ]: Procedure
WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.
- DRAIN ENGINE COOLANT (for Engine)
Refer to PROCEDURE - Step 4
- REMOVE INVERTER WITH CONVERTER ASSEMBLY
- for PHEV Model:
Refer to REMOVAL [08/2023 - ]
- for HEV Model:
Refer to REMOVAL [10/2022 - ]
- for PHEV Model:
- DISCONNECT NO. 3 WATER BY-PASS HOSE
- DISCONNECT NO. 4 WATER BY-PASS HOSE
- REMOVE EGR COOLER ASSEMBLY

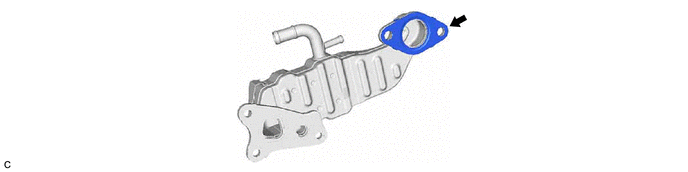

- REMOVE EGR VALVE GASKET
- REMOVE NO. 1 EGR COOLER GASKET
