The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during canister removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Gas leak from exhaust system is repaired	Perform Inspection After Repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [10/2022 - ]

WARNING:

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMPONENTS (REMOVAL)

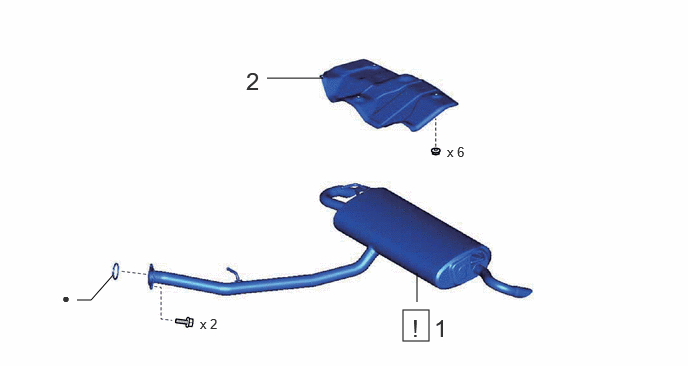

Fig 1: Canister (For PHEV Model) Removal Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	TAIL EXHAUST PIPE ASSEMBLY	17430	See step 1	-	-
2	LOWER MAIN MUFFLER HEAT INSULATOR	58328B	-	-	-

•

Non-reusable part

Fig 2: Canister (For PHEV Model) Removal Components (2 Of 2)

Procedure		Part Name Code
3	NO. 7 FUEL TANK BREATHER TUBE	77227B	See step 3	-	-
4	FUEL TANK VENT HOSE SUB-ASSEMBLY	77404A	See step 4	-	-
5	CANISTER (CHARCOAL CANISTER ASSEMBLY)	77740	-	-	-
6	CHARCOAL CANISTER OUTLET GUIDE	77775	-	-	-
7	LEAK DETECTION PUMP SUB-ASSEMBLY	77740R	See step 7	-	-

*1	CHARCOAL CANISTER SUB-ASSEMBLY	-	-
•	Non-reusable part	-	-
