DTC P0A11-14: DC/DC Converter Enable Circuit Short to Ground or Open [08/2023 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 450h+ and 2024 Lexus RX 450h+. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)

    See step  1

    Result

    Result Proceed to
    OK A
    NG (The connector is not connected securely.) B
    NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector.) C

    Result:

    B

    CONNECT SECURELY

    Result:

    C

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    A

    See step  2

  2. CHECK CONNECTOR CONNECTION CONDITION (DC/DC CONVERTER ASSEMBLY CONNECTOR)

    See step  2

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    CONNECT SECURELY

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (DC/DC CONVERTER ASSEMBLY POWER SUPPLY)
    WARNING:

    Be sure to wear insulated gloves.

    Pre-procedure1

    • Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    • Disconnect the DC/DC converter assembly connector.
      GTY1203576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition Result
      H5-1 (IGCT) - Body ground Ignition switch ON 11 to 14 V V
      GTY1203529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to DC/DC Converter Assembly)

      HINT:

      As there might be an intermittent malfunction in the DC/DC converter assembly power source circuit, inspect the following even if the measured voltage is as specified.

      • Installation condition of fuse(s) (before removing fuse(s)) (Power Source Circuit)
      • Fuse condition (before and after removing fuse(s)) (Power Source Circuit)
      • Connection condition of connectors (Power Source Circuit)
      • Wire harness condition (Power Source Circuit)
      • Wire harness condition (GND circuit)

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Reconnect the DC/DC converter assembly connector.

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CLEAR DTC

    See step  3

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    See step  5

  5. CHECK DTC OUTPUT (HYBRID CONTROL)

    Pre-procedure1

    • Depress the brake pedal and turn the ignition switch to ON (READY).

      HINT:

      Perform this step to check if the ignition switch can be turned to ON (READY).

    • Check for DTCs.

      Powertrain > Hybrid Control > Trouble Codes

      Result

      Result  Proceed to
      Ignition switch can be turned to ON (READY) and P0A11-14 is not output. A
      Ignition switch cannot be turned to ON (READY) and P0A11-14 is output. B

    Post-procedure1

    • Turn the ignition switch off.

    Result:

    A

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [10/2022 - ]

    Result:

    B

    See step  6

  6. CHECK HARNESS AND CONNECTOR (RESISTANCE VALUE OF NODD INSIDE HYBRID VEHICLE CONTROL ECU)
    WARNING:

    Be sure to wear insulated gloves.

    Pre-procedure1

    • Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    • Disconnect the DC/DC converter assembly connector.
      GTY1203576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      H5-5 (NODD) - Body ground Ignition switch off 110 to 150 kΩ kΩ
      GTY1203530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to DC/DC Converter Assembly)

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Reconnect the DC/DC converter assembly connector.

    Result:

    OK

    REPLACE DC/DC CONVERTER ASSEMBLY. Refer to  REMOVAL [08/2023 - ]

    Result:

    NG

    See step  7

  7. CHECK HARNESS AND CONNECTOR (DC/DC CONVERTER ASSEMBLY - HYBRID VEHICLE CONTROL ECU)
    WARNING:

    Be sure to wear insulated gloves.

    Pre-procedure1

    • Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    • Disconnect the DC/DC converter assembly connector.
      GTY1203576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Disconnect the hybrid vehicle control ECU connector.
    • Measure the resistance according to the value(s) in the table below.

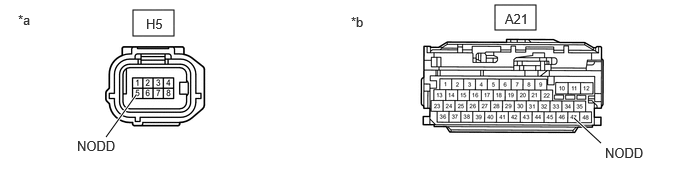

      GTY1204839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to DC/DC Converter Assembly)      		 *b Front view of wire harness connector
      (to Hybrid Vehicle Control ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      H5-5 (NODD) - A21-47 (NODD) Ignition switch off Below 1 Ω Ω
      H5-5 (NODD) or A21-47 (NODD) - Body ground and other terminals Ignition switch off 10 kΩ or higher kΩ

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Reconnect the hybrid vehicle control ECU connector.
    • Reconnect the DC/DC converter assembly connector.

    Result:

    OK

    REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
