DTC P0A1B-94: Drive Motor "A" Control Module Unexpected Operation [10/2022 - ]: Procedure

1. Check the connection of the negative (-) and positive (+) auxiliary battery terminals.

   OK

   The terminals are connected securely and there is no contact problem.

   HINT:

   If performing a simulation test, turn the ignition switch to ON and shake the wire harnesses vertically and horizontally before checking for DTCs.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  6

Result:

OK

See step  2

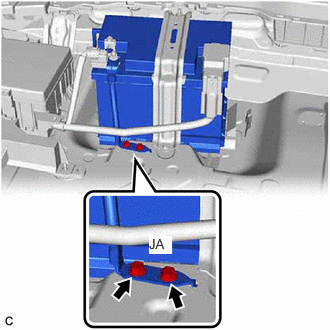

1. Check the installation condition of the ground wires JA.

   OK

   The ground wires JA are securely installed.

   HINT:

   If performing a simulation test, turn the ignition switch to ON and shake the wire harnesses vertically and horizontally before checking for DTCs.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  7

Result:

OK

See step  3

Pre-procedure1

• Remove the PM-IGCT fuse from the No. 2 engine room relay block and No. 2 junction block assembly.

• Measure the resistance according to the value(s) in the table below.

  Standard Resistance

  Tester Connection	Condition	Specified Condition	Result
  PM-IGCT fuse	Always	Below 1 Ω	Ω

  Result

  Proceed to
  OK
  NG

Post-procedure1

• Reinstall the IGCT fuse.

Result:

NG

See step  8

Result:

OK

See step  4

Pre-procedure1

• Check the IGCT NO. 1 relay for improper installation.

  OK

  The relay is installed securely.

  HINT:

  If performing a simulation test, turn the ignition switch to ON and gently vibrate the IGCT NO. 1 relay with a finger before checking for DTCs.

• Remove the IGCT NO. 1 relay from the No. 1 engine room relay block and No. 1 junction block assembly.

• Measure the resistance according to the value(s) in the table below.

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  *1	IGCT NO. 1 Relay

  Standard Resistance

  Tester Connection	Condition	Specified Condition	Result
  3 - 5	Auxiliary battery voltage not applied between terminals 1 and 2	10 kΩ or higher	kΩ
  3 - 5	Auxiliary battery voltage applied between terminals 1 and 2	Below 1 Ω	Ω

  Result

  Proceed to
  OK
  NG

Post-procedure1

• Install the IGCT NO. 1 relay.

Result:

NG

See step  9

Result:

OK

See step  5

Pre-procedure1

• None.

• Check for DTCs.

  HINT:

  Check the DTCs that were output when the vehicle was brought to the workshop.

  Powertrain > Hybrid Control > Trouble Codes

  Result

  Result	Proceed to
  Only P0A1B-94 is output	A
  P0A1B-94 and other DTCs are output	B

Post-procedure1

• Turn the ignition switch off.

Result:

A

REFER TO REPLACE HYBRID MOTOR CONTROL INVERTER ASSEMBLY PARTS. Refer to  DTC CHECK / CLEAR [10/2022 - ]

Result:

B

GO TO DTC CHART (HYBRID CONTROL SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [10/2022 - 10/2024]  , or Refer to  DIAGNOSTIC TROUBLE CODE CHART [10/2024 - ]

Result

Result:

NEXT

See step  10

Result

Result:

NEXT

See step  10

Result

Result:

NEXT

See step  10

Result

Result:

NEXT

See step  10

See step  4

Result

Result:

NEXT

See step  11

1. Turn the ignition switch to ON and wait for 2 minutes or more.
2. Turn the ignition switch off.

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  12

Pre-procedure1

• None.

• Check for DTCs.

  Powertrain > Hybrid Control > Trouble Codes

  Result

  Result	Proceed to
  DTCs are not output	A
  Only P0A1B-94 is output	B
  P0A1B-94 and other DTCs are output	C

Post-procedure1

• Turn the ignition switch off.

Result:

A

END

Result:

B

REFER TO REPLACE HYBRID MOTOR CONTROL INVERTER ASSEMBLY PARTS. Refer to  DTC CHECK / CLEAR [10/2022 - ]

Result:

C

GO TO DTC CHART (HYBRID CONTROL SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [10/2022 - 10/2024]  , or Refer to  DIAGNOSTIC TROUBLE CODE CHART [10/2024 - ]
