DTC U1150-87: Lost Communication with Hybrid Powertrain Control Module (Hybrid/EV Battery Local Bus) Missing Message [08/2023 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 450h+ and 2024 Lexus RX 450h+. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DTC OUTPUT (HYBRID CONTROL)

    Pre-procedure1

    • Enter the following menus:

      Powertrain > Hybrid Control > Trouble Codes

    • Check for DTCs.

      Result

      Result Proceed to
      DTCs are not output A
      DTCs are output B

    Post-procedure1

    • None

    Result:

    GO TO DTC CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [08/2023 - ]

    Result:

    See step  2

  2. CHECK HYBRID VEHICLE CONTROL ECU ASSEMBLY (HYBRID VEHICLE CONTROL ECU POWER SOURCE CIRCUIT)

    Pre-procedure1

    • Turn the ignition switch to ON.
    • Measure the voltage according to the value(s) in the table below.

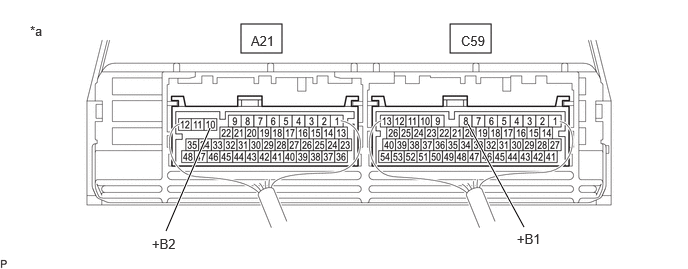

      GTY1204915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Hybrid Vehicle Control ECU)
      - -

      Standard Voltage

      Tester Connection Condition Specified Condition Result
      C59-8 (+B1) - Body ground Ignition switch ON 11 to 14 V V
      A21-10 (+B2) - Body ground Ignition switch ON 11 to 14 V V

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Turn the ignition switch off.

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (HYBRID VEHICLE CONTROL ECU POWER SOURCE CIRCUIT)

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR
    WARNING:

    Be sure to wear insulated gloves.

    Pre-procedure1

    • Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    • Disconnect the H124 electric vehicle charger assembly connector.
      NOTE:
      • Before disconnecting the connector, check that it is not loose or disconnected.
      • Check the terminals of the connector for deformation and corrosion.
    • Measure the resistance according to the value(s) in the table below.

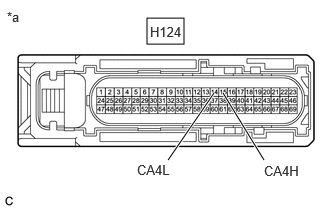

      GTY1204099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Electric Vehicle Charger Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      H124-15 (CA4H) - H124-14 (CA4L) Ignition switch off 54 to 69 Ω Ω

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Reconnect the electric vehicle charger assembly connector.

    Result:

    OK

    REPLACE ELECTRIC VEHICLE CHARGER ASSEMBLY. Refer to  REMOVAL [08/2023 - ]

    Result:

    NG

    See step  4

  4. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - ELECTRIC VEHICLE CHARGER ASSEMBLY)
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:
    • Before disconnecting the connector, check that it is not loose or disconnected.
    • Check the terminals of the connector for deformation and corrosion.

    Pre-procedure1

    • Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    • Disconnect the C59 hybrid vehicle control ECU connector.
    • Disconnect the H124 Electric vehicle charger assembly connector.
    • Disconnect the C35 transmission floor shift assembly (shift control ECU) connector.
    • Disconnect the B56 shift control actuator assembly (shift actuator ECU) connector.
    • Disconnect the o5 battery ECU assembly connector.
    • Connect the SST.

      HINT:

      Refer to Instructions for Connecting SST [08/2023 - ]

    • Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      C59-9 (CA4H) - H124-15 (CA4H) Ignition switch off Below 1 Ω Ω
      C59-22 (CA4L) - H124-14 (CA4L) Ignition switch off Below 1 Ω Ω
      C59-9 (CA4H) and H124-15 (CA4H) - Other terminals and body ground Ignition switch off 10 kΩ or higher
      C59-22 (CA4L) and H124-14 (CA4L) - Other terminals and body ground Ignition switch off 10 kΩ or higher
      NOTE:

      Make sure that each connector between the electric vehicle charger assembly and hybrid vehicle control ECU is not loose or disconnected and its terminals are not deformed or corroded.

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Disconnect the SST.
    • Reconnect the battery ECU assembly connector.
    • Reconnect the shift control actuator assembly (shift actuator ECU) connector.
    • Reconnect the transmission floor shift assembly (shift control ECU) connector.
    • Reconnect the Electric vehicle charger assembly connector.
    • Reconnect the hybrid vehicle control ECU connector.

    Result:

    OK

    REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
