DTC P0D56-15: Charging Connector Proximity Detection Circuit Short to Auxiliary Battery or Open [08/2023 - ]: Procedure

1. In accordance with the result of the customer problem analysis shown in the following table, confirm which electric vehicle charger cable assembly was used when the malfunction occurred.

   Result

   Result	Proceed to
   Charging station or electric vehicle charger cable assembly other than one provided with the vehicle was used when malfunction occurred	A
   Electric vehicle charger cable assembly provided with the vehicle was used when malfunction occurred	B

Result:

B

See step  3

Result:

A

See step  2

Pre-procedure1

• Enter the following menus: Health Check.
• Clear DTCs.
• According to the display on the GTS, read the Data List and confirm that the SOC of the HV battery is less than 70%.

  Powertrain > Hybrid Control > Data List

  Tester Display
  Hybrid/EV Battery SOC

  HINT:

  If the SOC of the HV battery is 70% or more, drive the vehicle in EV mode to discharge the HV battery until the SOC becomes less than 70%.

• Set charge schedule to off.

  HINT:

  • If no charge schedule has been registered, the above step is not necessary.
  1. Charge schedule setting method:

     - Using the steering pad switches, select "OFF" on the timer charge setting screen of the multi-information display.

  • Plug-in charging can be started immediately if the timer charge setting is canceled.
  • When the charge schedule is set, if the charging connector is disconnected and then connected while the charging indicator (EV charger lid indicator) is blinking (normal), the charge schedule will be canceled.
• Plug-in charge the vehicle using the electric vehicle charger cable assembly that was provided with the vehicle.
• Enter the following menus: Health Check.

• Check DTCs.

  Result

  Result	Proceed to
  DTCs not stored and plug-in charging started	A
  DTCs output	B

Post-procedure1

• Turn the power switch off.
• Disconnect the electric vehicle charger cable assembly.

Result:

A

CAUSE ANALYSIS (ENVIRONMENT RELATED CAUSE)

1. Analyze the cause according to the following table.
   ENVIRONMENT



   Possible Cause	Action to be Taken
   Open or short to +B in PISW circuit of charging station	1) Check charging station 2) Charge with the electric vehicle charger cable assembly provided with the vehicle
   Open or short to +B in PISW circuit of electric vehicle charger cable assembly other than one provided with vehicle	1) Inspect the charging cable that the customer used 2) Charge with the charging cable provided with the vehicle

2. Take appropriate action in accordance with the result of the cause analysis.

Result:

B

See step  3

HINT:

Perform the inspection with the charging cable (electric vehicle charger cable assembly) disconnected the plug.

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition	Result
   3 (PISW) - 5 (GND)	Latch release button (PISW) is pressed	430 to 530 Ω	Ω
   3 (PISW) - 5 (GND)	Latch release button (PISW) is not pressed	135 to 165 Ω	Ω

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Charging Cable (Electric Vehicle Charger Cable Assembly)

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE CHARGING CABLE (ELECTRIC VEHICLE CHARGER CABLE ASSEMBLY)

Result:

OK

See step  4

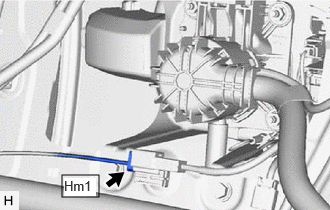

1. Check the connector connection and contact pressure of the relevant terminals of the Hm1 AC charger inlet cable connector.

   HINT:

   Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [10/2022 - ]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   The connector is connected securely and there are no contact pressure problems.

   Result

   Result	Proceed to
   OK	A
   NG (The connector is not connected securely)	B
   NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector)	C

Result:

B

CONNECT SECURELY

Result:

C

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

A

See step  5

1. Check the installation condition of the ground wire mA.

   OK

   The ground wire is securely installed.

   Result

   Proceed to
   OK
   NG

Result:

NG

CONNECT SECURELY

Result:

OK

See step  6

Pre-procedure1

• Check that the service plug grip is not installed.
  NOTE:

  After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.

• Disconnect the H124 electric vehicle charger assembly connector.

• Measure the resistance according to the value(s) in the table below.

  Standard Resistance

  Tester Connection	Condition	Specified Condition	Result
  m3-3 (PISW) - m3-5 (GND)	Ignition switch off	2.3 to 3.0 kΩ	kΩ
  m3-3 (PISW) - Body ground	Ignition switch off	2.3 to 3.0 kΩ	kΩ

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  *a	AC Charger Inlet Cable (Charging Inlet)

  Result

  Proceed to
  OK
  NG

Post-procedure1

• Reconnect the electric vehicle charger assembly connector.

Result:

NG

See step  9

Result:

OK

See step  7

Pre-procedure1

• Disconnect the Hm1 AC charger inlet cable connector.

• Measure the resistance according to the value(s) in the table below.

  Standard Resistance

  Tester Connection	Condition	Specified Condition	Result
  m3-3 (PISW) - m3-5 (GND)	Ignition switch off	2.3 to 3.0 kΩ	kΩ
  m3-5 (GND) - Body ground	Ignition switch off	Below 1 Ω	Ω
  m3-3 (PISW) - Hm1-1 (PISW)	Ignition switch off	Below 1 Ω	Ω

  Result

  Proceed to
  OK
  NG

Post-procedure1

• Reconnect the AC charger inlet cable connector.

Result:

NG

REPAIR OR REPLACE AC CHARGER INLET CABLE. Refer to  REMOVAL [08/2023 - ]

Result:

OK

See step  8

Pre-procedure1

• Check that the service plug grip is not installed.
  NOTE:

  After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.

• Disconnect the Hm1 AC charger inlet cable connector.
• Disconnect the H124 electric vehicle charger assembly connector.

• Measure the resistance according to the value(s) in the table below.

  Standard Resistance

  Tester Connection	Condition	Specified Condition	Result
  Hm1-1 (PISW) - H124-1 (PISW)	Ignition switch off	Below 1 Ω	Ω

  Result

  Proceed to
  OK
  NG

Post-procedure1

• Reconnect the electric vehicle charger assembly connector.
• Reconnect the AC charger inlet cable connector.

Result:

OK

REPLACE ELECTRIC VEHICLE CHARGER ASSEMBLY. Refer to  REMOVAL [08/2023 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Pre-procedure1

• Disconnect the Hm1 AC charger inlet cable connector.
• Connect the cable to the negative (-) auxiliary battery terminal.
• Turn the ignition switch to ON.

• Measure the voltage according to the value(s) in the table below.

  Standard Voltage

  Tester Connection	Condition	Specified Condition	Result
  m3-3 (PISW) - m3-5 (GND)	Ignition switch ON	Below 1 V	V
  m3-3 (PISW) - Body ground	Ignition switch ON	Below 1 V	V

  NOTE:

  Turning the ignition switch to ON with the AC charger inlet cable connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  *a	AC Charger Inlet Cable (Charging Inlet)

  Result

  Proceed to
  OK
  NG

  HINT:

  • Connectors
    • Slightly shake the connector vertically and horizontally.
  • Wire harness
    • Slightly shake the wire harness vertically and horizontally.

      The connector joint and fulcrum of the vibration are the major areas that should be checked thoroughly.

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  *a	Example
  *b	Shake Slightly
  *c	Vibrate Slightly

Post-procedure1

• Turn the ignition switch off.
• Disconnect the cable from the negative (-) auxiliary battery terminal.
• Reconnect the AC charger inlet cable connector.

Result:

OK

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

NG

REPAIR OR REPLACE AC CHARGER INLET CABLE. Refer to  REMOVAL [08/2023 - ]
