Parts Location [08/2023 - ]: Illustration

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

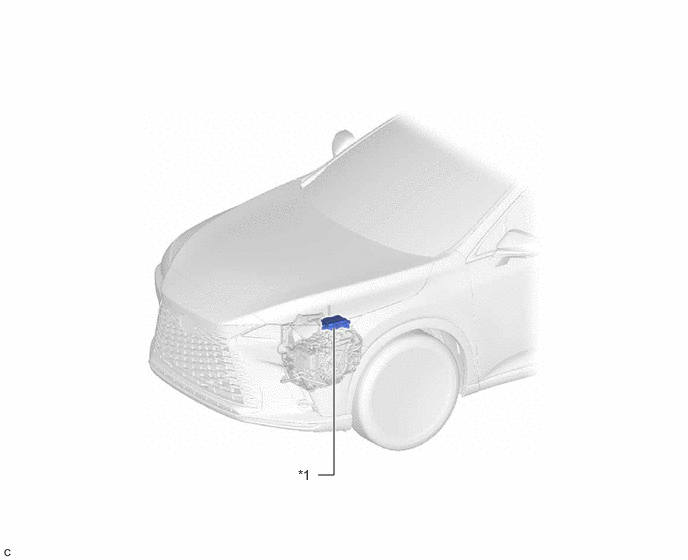

GTY1207251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 SHIFT CONTROL ACTUATOR ASSEMBLY
- SHIFT ACTUATOR ECU		 - -

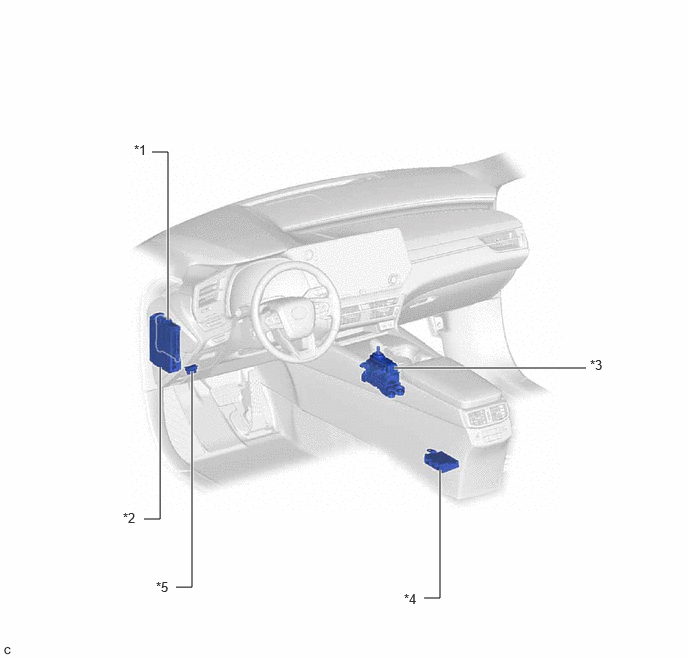

GTY1207509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) *2 POWER DISTRIBUTION BOX ASSEMBLY
*3 TRANSMISSION FLOOR SHIFT ASSEMBLY
- SHIFT CONTROL ECU		 *4 SECOND POWER SUPPLY REMOTE PARKING CIRCUIT
*5 DLC3 - -

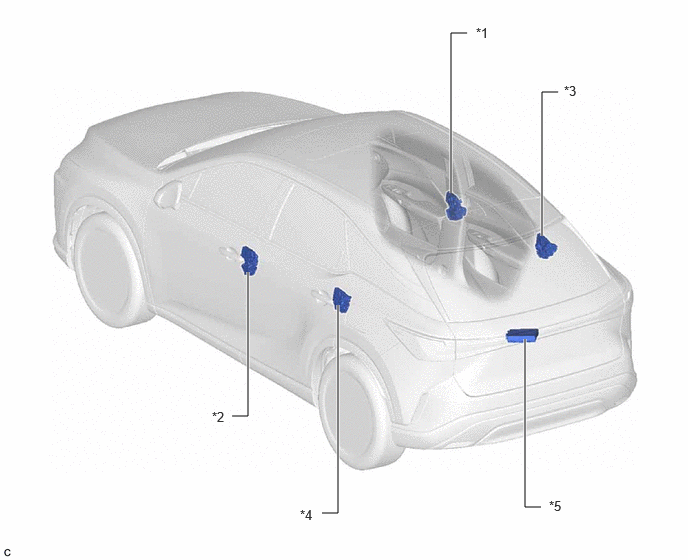

GTY1206904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH
- E-LATCH ECU		 *2 FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH
- E-LATCH ECU
- DOOR COURTESY SWITCH
*3 REAR DOOR LOCK WITH MOTOR ASSEMBLY RH
- E-LATCH ECU		 *4 REAR DOOR LOCK WITH MOTOR ASSEMBLY LH
- E-LATCH ECU
*5 INTEGRATED CAPACITOR (INTEGRATION CONTROL SUPPLY) - -
