Check Bus 2 Line [08/2023 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1127104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      C64-26 (CA4H) - C64-25 (CA4L) Cable disconnected from negative (-) battery terminal Below 70 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  62

    Result:

    OK

    See step  2

  2. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1127104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      C64-26 (CA4H) - C64-25 (CA4L) Cable disconnected from negative (-) battery terminal 54 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  43

    Result:

    OK

    See step  3

  3. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

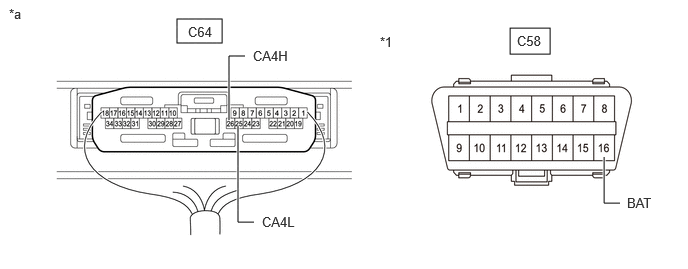

      GTY1122669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      C64-26 (CA4H) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C64-25 (CA4L) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  24

    Result:

    OK

    See step  4

  4. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

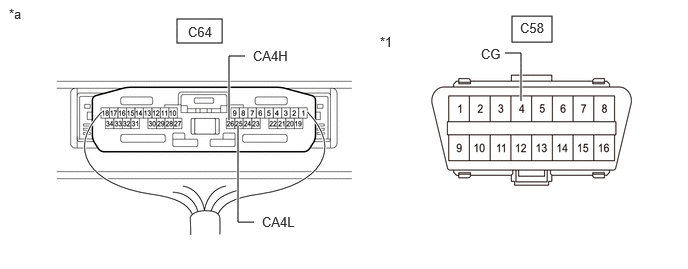

      GTY1122670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      C64-26 (CA4H) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C64-25 (CA4L) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    See step  5

  5. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Sub Battery System A
      w/o Sub Battery System B

    Result:

    B

    See step  16

    Result:

    A

    See step  6

  6. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the C187 No. 9 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-2 (CANH) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C187-8 (CANL) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  11

    Result:

    OK

    See step  7

  7. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-3 (CANH) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C187-9 (CANL) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  12

    Result:

    OK

    See step  8

  8. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-6 (CANH) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C187-12 (CANL) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  13

    Result:

    OK

    See step  9

  9. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-4 (CANH) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C187-10 (CANL) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  14

    Result:

    OK

    See step  10

  10. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - INTEGRATION CONTROL SUPPLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-5 (CANH) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C187-11 (CANL) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  15

  11. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the C64 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-2 (CANH) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C187-8 (CANL) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  12. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Disconnect the A16 ECM connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-3 (CANH) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C187-9 (CANL) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)

  13. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Disconnect the C35 transmission floor shift assembly (shift control ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-6 (CANH) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C187-12 (CANL) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU). Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))

  14. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
    1. Disconnect the C36 engine stop and start ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-4 (CANH) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C187-10 (CANL) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE STOP AND START ECU. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

  15. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - INTEGRATION CONTROL SUPPLY)
    1. Disconnect the H191 integration control supply connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-5 (CANH) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C187-11 (CANL) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE INTEGRATION CONTROL SUPPLY. Refer to  REMOVAL [08/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - INTEGRATION CONTROL SUPPLY)

  16. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the C98 No. 9 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-1 (CANH) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C98-5 (CANL) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  20

    Result:

    OK

    See step  17

  17. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-2 (CANH) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C98-6 (CANL) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  21

    Result:

    OK

    See step  18

  18. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-4 (CANH) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C98-8 (CANL) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  22

    Result:

    OK

    See step  19

  19. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-3 (CANH) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C98-7 (CANL) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  23

  20. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the C64 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-1 (CANH) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C98-5 (CANL) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  21. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Disconnect the A16 ECM connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-2 (CANH) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C98-6 (CANL) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)

  22. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Disconnect the C35 transmission floor shift assembly (shift control ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-4 (CANH) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C98-8 (CANL) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU). Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))

  23. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
    1. Disconnect the C36 engine stop and start ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-3 (CANH) - C58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      C98-7 (CANL) - C58-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE STOP AND START ECU. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

  24. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Sub Battery System A
      w/o Sub Battery System B

    Result:

    B

    See step  35

    Result:

    A

    See step  25

  25. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the C187 No. 9 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-2 (CANH) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C187-8 (CANL) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  30

    Result:

    OK

    See step  26

  26. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-3 (CANH) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C187-9 (CANL) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  31

    Result:

    OK

    See step  27

  27. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-6 (CANH) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C187-12 (CANL) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  32

    Result:

    OK

    See step  28

  28. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-4 (CANH) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C187-10 (CANL) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  33

    Result:

    OK

    See step  29

  29. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - INTEGRATION CONTROL SUPPLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-5 (CANH) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C187-11 (CANL) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  34

  30. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the C64 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-2 (CANH) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C187-8 (CANL) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  31. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Disconnect the A16 ECM connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-3 (CANH) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C187-9 (CANL) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)

  32. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Disconnect the C35 transmission floor shift assembly (shift control ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-6 (CANH) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C187-12 (CANL) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU). Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))

  33. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
    1. Disconnect the C36 engine stop and start ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-4 (CANH) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C187-10 (CANL) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE STOP AND START ECU. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

  34. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - INTEGRATION CONTROL SUPPLY)
    1. Disconnect the H191 integration control supply connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-5 (CANH) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C187-11 (CANL) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE INTEGRATION CONTROL SUPPLY. Refer to  REMOVAL [08/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - INTEGRATION CONTROL SUPPLY)

  35. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the C98 No. 9 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-1 (CANH) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C98-5 (CANL) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  39

    Result:

    OK

    See step  36

  36. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-2 (CANH) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C98-6 (CANL) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  40

    Result:

    OK

    See step  37

  37. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-4 (CANH) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C98-8 (CANL) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  41

    Result:

    OK

    See step  38

  38. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-3 (CANH) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C98-7 (CANL) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  42

  39. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the C64 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-1 (CANH) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C98-5 (CANL) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  40. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Disconnect the A16 ECM connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-2 (CANH) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C98-6 (CANL) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)

  41. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Disconnect the C35 transmission floor shift assembly (shift control ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-4 (CANH) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C98-8 (CANL) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU). Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))

  42. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
    1. Disconnect the C36 engine stop and start ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-3 (CANH) - C58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      C98-7 (CANL) - C58-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE STOP AND START ECU. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

  43. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Sub Battery System A
      w/o Sub Battery System B

    Result:

    B

    See step  54

    Result:

    A

    See step  44

  44. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the C187 No. 9 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-2 (CANH) - C187-8 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  49

    Result:

    OK

    See step  45

  45. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-3 (CANH) - C187-9 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  50

    Result:

    OK

    See step  46

  46. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-6 (CANH) - C187-12 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  51

    Result:

    OK

    See step  47

  47. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-4 (CANH) - C187-10 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  52

    Result:

    OK

    See step  48

  48. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - INTEGRATION CONTROL SUPPLY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-5 (CANH) - C187-11 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  53

  49. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the C64 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-2 (CANH) - C187-8 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  50. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Disconnect the A16 ECM connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-3 (CANH) - C187-9 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)

  51. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Disconnect the C35 transmission floor shift assembly (shift control ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-6 (CANH) - C187-12 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU). Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))

  52. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
    1. Disconnect the C36 engine stop and start ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-4 (CANH) - C187-10 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE STOP AND START ECU. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

  53. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - INTEGRATION CONTROL SUPPLY)
    1. Disconnect the H191 integration control supply connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-5 (CANH) - C187-11 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE INTEGRATION CONTROL SUPPLY. Refer to  REMOVAL [08/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - INTEGRATION CONTROL SUPPLY)

  54. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the C98 No. 9 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-1 (CANH) - C98-5 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  58

    Result:

    OK

    See step  55

  55. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-2 (CANH) - C98-6 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  59

    Result:

    OK

    See step  56

  56. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-4 (CANH) - C98-8 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  60

    Result:

    OK

    See step  57

  57. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-3 (CANH) - C98-7 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  61

  58. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the C64 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-1 (CANH) - C98-5 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  59. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Disconnect the A16 ECM connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-2 (CANH) - C98-6 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)

  60. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))
    1. Disconnect the C35 transmission floor shift assembly (shift control ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-4 (CANH) - C98-8 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU). Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT CONTROL ECU))

  61. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
    1. Disconnect the C36 engine stop and start ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-3 (CANH) - C98-7 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE STOP AND START ECU. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

  62. CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the C64 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C64-26 (CA4H) - C64-25 (CA4L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU). Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    See step  63

  63. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Sub Battery System A
      w/o Sub Battery System B

    Result:

    B

    See step  67

    Result:

    A

    See step  64

  64. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Reconnect the C64 central gateway ECU (network gateway ECU) connector.
    2. Disconnect the C187 No. 9 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-2 (CANH) - C187-8 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

    Result:

    OK

    See step  65

  65. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C187-3 (CANH) - C187-9 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  66

  66. CHECK FOR OPEN IN CAN MAIN BUS LINES (ECM)
    1. Reconnect the C187 No. 9 global CAN junction connector.
    2. Disconnect the A16 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A16-26 (CANH) - A16-25 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (ECM - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)

  67. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Reconnect the C64 central gateway ECU (network gateway ECU) connector.
    2. Disconnect the C98 No. 9 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-1 (CANH) - C98-5 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

    Result:

    OK

    See step  68

  68. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C98-2 (CANH) - C98-6 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  69

  69. CHECK FOR OPEN IN CAN MAIN BUS LINES (ECM)
    1. Reconnect the C98 No. 9 global CAN junction connector.
    2. Disconnect the A16 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A16-26 (CANH) - A16-25 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (ECM - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)

scientia non olet · About LEMON Manuals
