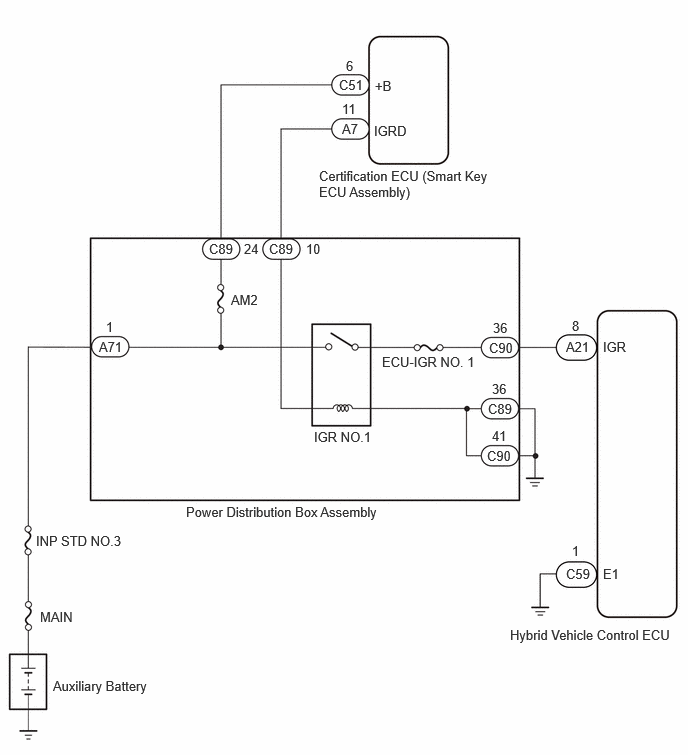

DTC P2533-14: Ignition Switch On/Start Position Circuit Low Circuit Short to Ground or Open [10/2022 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2025 Lexus RX 350h, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.
