DTC P0A96-96: Hybrid/EV Battery Cooling Fan 2 Component Internal Failure; DTC P0A96-98: Hybrid/EV Battery Cooling Fan 2 Component or System Over Temperature [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350h, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DTC OUTPUT (HYBRID CONTROL)

    Pre-procedure1

    • None.
    • Check for DTCs.

      Powertrain > Hybrid Control > Trouble Codes

      Result

      Result Proceed to
      P0AFC-00, P0AFC-96 or P308A-12 is not output A
      P0AFC-00, P0AFC-96 or P308A-12 is output B

    Post-procedure1

    • Turn the ignition switch off.

    Result:

    B

    GO TO DTC CHART (HYBRID CONTROL SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [10/2022 - 10/2024]  , or Refer to  DIAGNOSTIC TROUBLE CODE CHART [10/2024 - ]

    Result:

    A

    See step  2

  2. CHECK DUCT AND BLOWER
    WARNING:

    Be sure to wear insulated gloves.

    Pre-procedure1

    • Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    • Check that the No. 1 HV battery intake filter, No. 2 battery cooling blower assembly, No. 1 hybrid battery intake duct and No. 2 hybrid battery intake duct are not disconnected, damaged, or clogged with foreign matter.

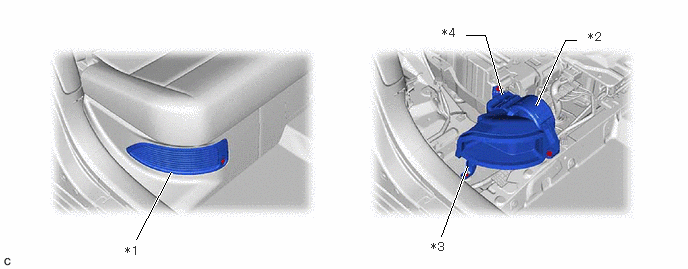

      GTY1131190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 HV Battery Intake Filter *2 No. 2 Battery Cooling Blower Assembly
      *3 No. 1 Hybrid Battery Intake Duct *4 No. 2 Hybrid Battery Intake Duct

      OK

      The No. 1 HV battery intake filter, No. 1 hybrid battery intake duct, No. 2 hybrid battery intake duct and No. 2 battery cooling blower assembly are not disconnected, damaged, or clogged with foreign matter.

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None.

    Result:

    NG

    CORRECT THE PROBLEM

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (BATTERY VOLTAGE SENSOR - NO. 2 BATTERY COOLING BLOWER ASSEMBLY)

    See step  3

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (BATTERY VOLTAGE SENSOR - NO. 2 BATTERY COOLING BLOWER ASSEMBLY)

    See step  8

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. CHECK BATTERY VOLTAGE SENSOR (GROUND SHORT CHECK)

    Pre-procedure1

    • Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      z34-6 (SI1) - z34-7 (GND) Ignition switch off 10 kΩ or higher kΩ
      GTY1133473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Battery Voltage Sensor)

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Install the battery voltage sensor.

    Result:

    NG

    REPLACE BATTERY VOLTAGE SENSOR. Refer to  REMOVAL [10/2022 - ]

    Result:

    OK

    See step  6

  6. READ VALUE USING GTS (HYBRID/EV BATTERY COOLING FAN 2 FREQUENCY)

    See step  4

    Result

    Result Proceed to
    Both of the values in the Data List (Hybrid/EV Battery Cooling Fan 2 Frequency) and the actual measured value at the battery cooling blower assembly connector are 0 Hz. A
    Other than above B

    Result:

    B

    See step  8

    Result:

    A

    See step  7

  7. CHECK BATTERY VOLTAGE SENSOR

    See step  5

    Result

    Proceed to
    OK
    NG

    Result:

    OK

    REPLACE NO. 2 BATTERY COOLING BLOWER ASSEMBLY. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPLACE BATTERY VOLTAGE SENSOR. Refer to  REMOVAL [10/2022 - ]

  8. CHECK BATTERY VOLTAGE SENSOR (FREQUENCY)

    See step  6

    Result

    Proceed to
    OK
    NG

    Result:

    OK

    REPLACE NO. 2 BATTERY COOLING BLOWER ASSEMBLY. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPLACE BATTERY VOLTAGE SENSOR. Refer to  REMOVAL [10/2022 - ]
