DTC P0ADD-15: Hybrid/EV Battery Negative Contactor Circuit Short to Auxiliary Battery or Open [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350h, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. READ VALUE USING GTS (SMRG STATUS)

    Pre-procedure1

    • None.
    • Read the Data List.

      Powertrain > Hybrid Control > Data List

      Tester Display
      SMRG Status

      Standard

      Tester Display Condition Specified Condition
      SMRG Status Ignition switch ON OFF

      Result

      Result Proceed to
      The value of SMRG Status is OFF A
      The value of SMRG Status is ON B

    Post-procedure1

    • Turn the ignition switch off.

    Result:

    B

    See step  5

    Result:

    A

    See step  2

  2. CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)

    HINT:

    Refer to PROCEDURE - Step 1

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    CONNECT SECURELY

    Result:

    OK

    See step  3

  3. CHECK CONNECTOR CONNECTION CONDITION (FLOOR WIRE CONNECTOR)

    HINT:

    Refer to PROCEDURE - Step 5

    Result

    Result Proceed to
    OK A
    NG (The connector is not connected securely.) B
    NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector.) C

    Result:

    B

    CONNECT SECURELY

    Result:

    C

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    A

    See step  4

  4. CHECK CONNECTOR CONNECTION CONDITION (NO. 1 TRACTION BATTERY DEVICE BOX ASSEMBLY CONNECTOR)

    HINT:

    Refer to PROCEDURE - Step 8

    Result

    Proceed to
    OK
    NG

    Result:

    OK

    CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [10/2022 - ]

    Result:

    NG

    CONNECT SECURELY

  5. CHECK HARNESS AND CONNECTOR (SMRG VOLTAGE)

    Pre-procedure1

    • None.
    • Measure the voltage according to the value(s) in the table below.

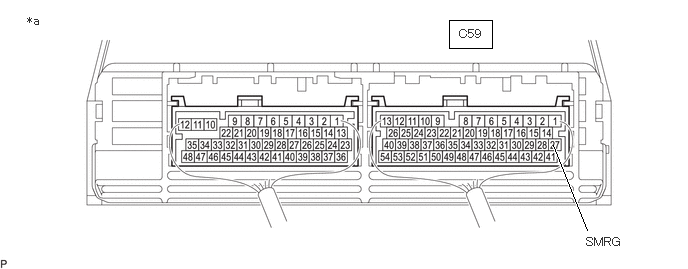

      GTY1131392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Hybrid Vehicle Control ECU)      		 - -

      Standard Voltage

      Tester Connection Condition Specified Condition Result
      C59-27 (SMRG) - Body ground Ignition switch ON Below 1 V V

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Turn the ignition switch off.

    Result:

    NG

    See step  7

    Result:

    OK

    See step  6

  6. CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)

    HINT:

    Refer to PROCEDURE - Step 1

    Result

    Proceed to
    OK
    NG

    Result:

    OK

    REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    CONNECT SECURELY

  7. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - BODY GROUND)

    Pre-procedure1

    • Disconnect the hybrid vehicle control ECU connector.
    • Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      C59-27 (SMRG) - Body ground Ignition switch off 19.0 to 59.0 Ω Ω

      Result

      Proceed to
      OK
      NG
      GTY1130063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Hybrid Vehicle Control ECU)

    Post-procedure1

    • Reconnect the hybrid vehicle control ECU connector.

    Result:

    NG

    See step  9

    Result:

    OK

    See step  8

  8. CHECK HARNESS AND CONNECTOR (SHORT TO POWER SUPPLY WIRES)
    WARNING:

    Be sure to wear insulated gloves.

    Pre-procedure1

    • Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    • Disconnect the No. 1 traction battery device box assembly connector.
      GTY1133805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Disconnect the hybrid vehicle control ECU connector.
    • Turn the ignition switch to ON.
    • Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition Result
      C59-27 (SMRG) or H23-4 (SMRG) - Body ground Ignition switch ON Below 1 V V
      NOTE:

      Turning the ignition switch to ON with the hybrid vehicle control ECU connector and the No. 1 traction battery device box assembly connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

      GTY1132309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Hybrid Vehicle Control ECU)
      *b Front view of wire harness connector
      (to No. 1 Traction Battery Device Box Assembly)

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Turn the ignition switch off.
    • Reconnect the hybrid vehicle control ECU connector.
    • Reconnect the No. 1 traction battery device box assembly connector.

    Result:

    OK

    REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  9. CHECK CONNECTOR CONNECTION CONDITION (FLOOR WIRE CONNECTOR)

    HINT:

    Refer to PROCEDURE - Step 5

    Result

    Result Proceed to
    OK A
    NG (The connector is not connected securely.) B
    NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector.) C

    Result:

    B

    CONNECT SECURELY

    Result:

    C

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    A

    See step  10

  10. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - NO. 1 TRACTION BATTERY DEVICE BOX ASSEMBLY)
    WARNING:

    Be sure to wear insulated gloves.

    Pre-procedure1

    • Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    • Disconnect the No. 1 traction battery device box assembly connector.
      GTY1133805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Disconnect the hybrid vehicle control ECU connector.
    • Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition Result
      C59-27 (SMRG) - H23-4 (SMRG) Ignition switch off Below 1 Ω Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition Result
      C59-27 (SMRG) or H23-4 (SMRG) - Body ground and other terminals Ignition switch off 10 kΩ or higher kΩ
      GTY1132309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Hybrid Vehicle Control ECU)
      *b Front view of wire harness connector
      (to No. 1 Traction Battery Device Box Assembly)

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Reconnect the hybrid vehicle control ECU connector.
    • Reconnect the No. 1 traction battery device box assembly connector.

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  11

  11. CHECK HARNESS AND CONNECTOR (NO. 1 TRACTION BATTERY DEVICE BOX ASSEMBLY - BODY GROUND)

    HINT:

    See step  11

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  12

  12. INSPECT NO. 1 TRACTION BATTERY DEVICE BOX ASSEMBLY (SMRG)
    WARNING:

    Be sure to wear insulated gloves.

    Pre-procedure1

    • Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    • Disconnect the No. 1 traction battery device box assembly connector.
    • Measure the resistance according to the value(s) in the table below.

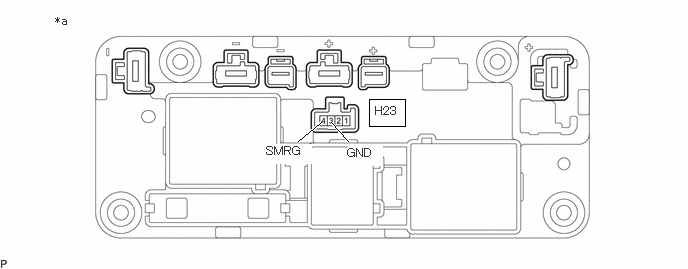

      GTY1131741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (No. 1 Traction Battery Device Box Assembly)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      H23-4 (SMRG) - H23-3 (GND) -40 to 80°C (-40 to 176°F) 19.0 to 59.0 Ω Ω

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • Reconnect the No. 1 traction battery device box assembly connector.

    Result:

    OK

    CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [10/2022 - ]

    Result:

    NG

    REPLACE NO. 1 TRACTION BATTERY DEVICE BOX ASSEMBLY. Refer to  REMOVAL [10/2022 - ]
