DTC P0ABF-00: Hybrid/EV Battery Current Sensor "A" Circuit Range/Performance [10/2022 - ]: Description
WARNING: This page is about a different car, the 2025 Lexus RX 350h, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.

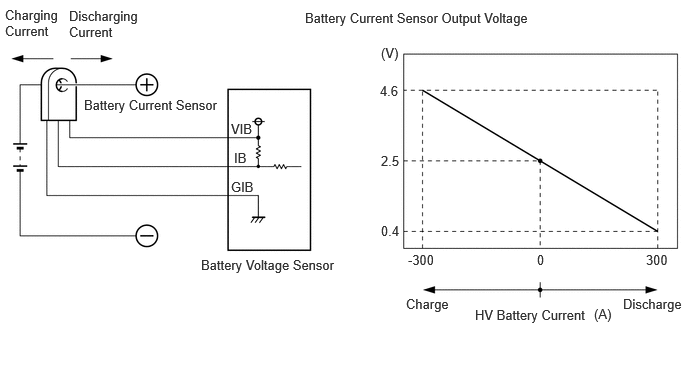

A battery current sensor is installed to the positive (+) terminal side of the HV battery and detects current flowing from the HV battery. The battery current sensor outputs voltage, which changes between 0 and 5 V according to the detected amperage, to the IB terminal of the battery voltage sensor. The battery voltage sensor sends signals to the hybrid vehicle control ECU. The hybrid vehicle control ECU determines the charging and discharging amount of the HV battery based on the received signals and calculates the SOC of the HV battery through the accumulated amperage.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Warning Indicate | DTC Output from | Priority | Note |
|---|---|---|---|---|---|---|---|---|
| P0ABF-00 | Hybrid/EV Battery Current Sensor "A" Circuit Range/Performance | Abnormal battery current sensor characteristics: (based on hybrid system consumption and HV battery output). (1 trip detection logic) |
|
Comes on | Master Warning: Comes on |
Hybrid Control | A | SAE Code: P0AC0 |
