Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2022 - ]
  2. REMOVE BATTERY

    Refer to REMOVAL [10/2022 - ]

  3. REMOVE VACUUM SENSOR ASSEMBLY
    1. GTY1133488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

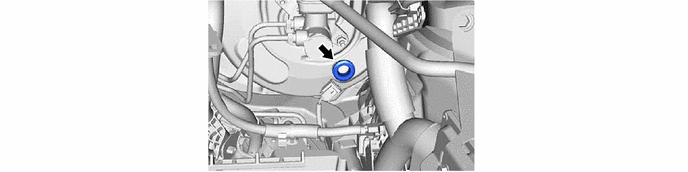

  4. REMOVE VACUUM SENSOR GROMMET
    1. GTY1133487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
