Caution / Notice / Hint

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during vacuum sensor assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Battery terminal is disconnected/reconnected	Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly	Parking Support Brake System*	Refer to INITIALIZATION [10/2022 - ]
Replacement of battery	Integrated current value initialization	Stop and Start System	Refer to REGISTRATION [10/2022 - ]

*: When "[Parking Support Brake System icon] System Stopped See Owner's Manual" is displayed on the multi-information display.

NOTE:

To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) battery terminal.

Refer to INSPECTION MODE PROCEDURE [10/2022 - ]

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted.	Refer to PRECAUTION [10/2022 - ]
Front Camera System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	Refer to INITIALIZATION [10/2022 - ]
Adaptive High Beam System
Lighting System (w/ Automatic Headlight Beam Level Control System)

LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Back Door System	Reset back door close position	Refer to INITIALIZATION [10/2022 - ]
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

COMPONENTS (REMOVAL)

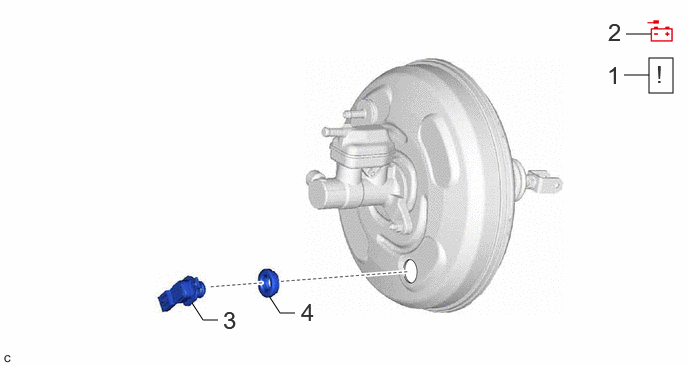

Fig 1: Vacuum Sensor Assembly Removal Components

Procedure		Part Name Code
1	PRECAUTION	-	See step 1	-	-
2	BATTERY	-	-	-	-
3	VACUUM SENSOR ASSEMBLY	89420H	-	-	-
4	VACUUM SENSOR GROMMET	-	-	-	-
