Installation [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL VACUUM SENSOR GROMMET
  2. INSTALL VACUUM SENSOR ASSEMBLY

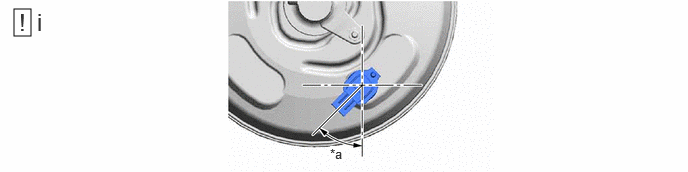

    1. GTY1130572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 45° +/- 20° - -
      1. Install the vacuum sensor assembly to the brake booster assembly so that it is positioned as shown in the illustration.
    2. GTY1133488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL BATTERY

    Refer to INSTALLATION [10/2022 - ]
