Installation [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

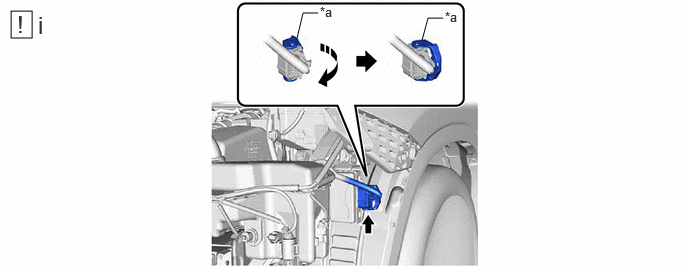

INSTALL NO. 1 CONVERTER CONTROL BRACKET
Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

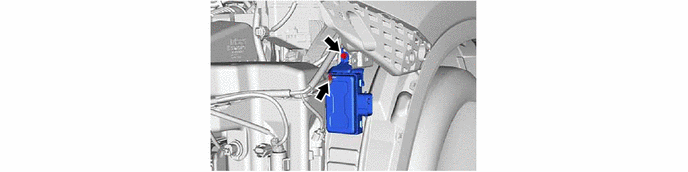

INSTALL ECO RUN VEHICLE CONVERTER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

Lock Lever

Connect the eco run vehicle converter assembly connector and move the lock lever as shown in the illustration to lock it.

INSTALL FRONT BUMPER ASSEMBLY
for Sport Package: Refer to INSTALLATION [10/2022 - ]

except Sport Package: Refer to INSTALLATION [10/2022 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 5
PERFORM INITIALIZATION
Refer to WORK PROCEDURE [10/2022 - 08/2023] , or refer to WORK PROCEDURE [08/2023 - ]
