Removal [10/2022 - ]: Procedure

  1. DRAIN ENGINE COOLANT

    Refer to REPLACEMENT [10/2022 - ]

  2. DRAIN COOLANT (for Intercooler)

    HINT:

    Perform this procedure only when replacement of the engine coolant temperature sensor (for Water Inlet Housing Side) is necessary.

    Refer to REPLACEMENT [10/2022 - ]

  3. REMOVE ENGINE COOLANT TEMPERATURE SENSOR (for Outlet Side)
    NOTE:

    If the engine coolant temperature sensor has been struck or dropped, replace it.
    1. GTY1205391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT NO. 2 INTERCOOLER COOLING WATER PIPE

    HINT:

    Perform this procedure only when replacement of the engine coolant temperature sensor (for Water Inlet Housing Side) is necessary.

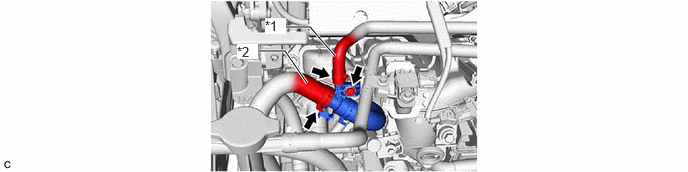

    1. GTY1132611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 4 Turbo Water Hose *2 No. 2 Inverter Cooling Outlet Hose
  5. DISCONNECT NO. 1 INTERCOOLER COOLING WATER PIPE

    HINT:

    Perform this procedure only when replacement of the engine coolant temperature sensor (for Water Inlet Housing Side) is necessary.

    1. GTY1133037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT NO. 3 WATER HOSE CLAMP BRACKET

    HINT:

    Perform this procedure only when replacement of the engine coolant temperature sensor (for Water Inlet Housing Side) is necessary.

    1. GTY1133038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE ENGINE COOLANT TEMPERATURE SENSOR (for Water Inlet Housing Side)
    NOTE:

    If the engine coolant temperature sensor has been struck or dropped, replace it.
    1. GTY1076275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the engine coolant temperature sensor (for Cylinder Head Side) is necessary.

    Refer to REMOVAL [10/2022 - ]

  9. REMOVE ENGINE COOLANT TEMPERATURE SENSOR (for Cylinder Head Side)
    1. GTY1076474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the engine coolant temperature sensor connector.
      2. Using SST, remove the engine coolant temperature sensor from the cylinder head sub-assembly.
        • SST: 09817-33191
        NOTE:

        If the engine coolant temperature sensor has been struck or dropped, replace it.

      3. Remove the gasket from the engine coolant temperature sensor.
