Removal [10/2022 - ]: Procedure

  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to REMOVAL [10/2022 - ]

  2. REMOVE AIR FUEL RATIO SENSOR (for Sensor 1)
    Refer to PROCEDURE - Step 5
  3. REMOVE AIR FUEL RATIO SENSOR (for Sensor 2)
    Refer to PROCEDURE - Step 4

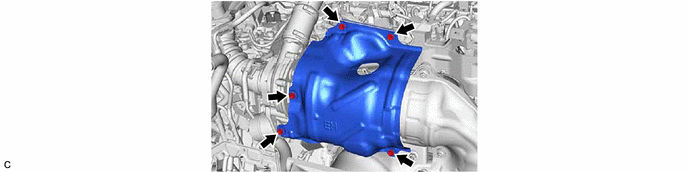

  4. REMOVE NO. 1 TURBO INSULATOR
    1. GTY1132977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE EXHAUST PIPE CLAMP
    1. GTY1132978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CONVERTER WITH CATALYST ASSEMBLY
    1. GTY1129725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

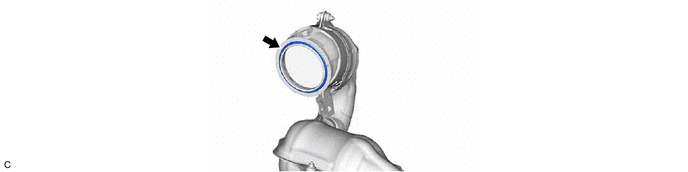

  7. REMOVE TURBINE OUTLET ELBOW GASKET
    1. GTY1078089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
