Inspection [10/2022 - ]: Procedure
- INSPECT VSC OFF SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(VSC OFF Switch (Electric Parking Brake Switch Assembly))Standard Resistance
Tester Connection Condition Specified Condition Result C29-4 (+) - C29-7 (E) Switch pushed Below 1 Ω Ω C29-4 (+) - C29-7 (E) Switch not pushed 10 kΩ or higher kΩ
- Measure the resistance according to the value(s) in the table below.
- INSPECT BRAKE HOLD SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(Brake Hold Switch (Electric Parking Brake Switch Assembly))Standard Resistance
Tester Connection Condition Specified Condition Result C29-3 (+B) - C29-7 (E) Switch pushed Below 1 Ω Ω C29-3 (+B) - C29-7 (E) Switch not pushed 10 kΩ or higher kΩ
- Measure the resistance according to the value(s) in the table below.

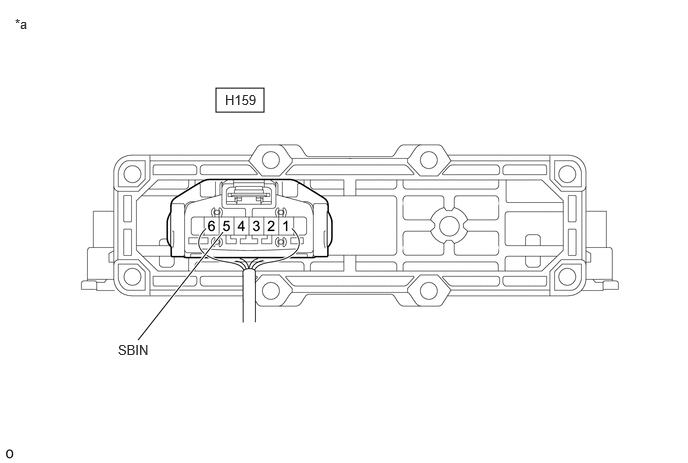

- INSPECT BRAKE CONTROL POWER SUPPLY ASSEMBLY
- Measure the resistance according to the value(s) in the table below.
*a Component with harness connected
(Brake Control Power Supply Assembly)- - NOTE:If the integration control supply is installed, measure with the brake control power supply assembly connector connected and the integration control supply connector disconnected.
Standard Resistance
Tester Connection Condition Specified Condition Result H159-5 (SBIN) - Body ground* Always 10 kΩ or higher kΩ *: w/ Advanced Park (Remote Controlled)
- Measure the resistance according to the value(s) in the table below.
