Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during battery charger connector opening lid sub-assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of service plug grip	High voltage fuse accumulated load history reset	DTCs are stored	Refer to UTILITY [08/2023 - ]

WARNING:

Orange wire harnesses and connectors indicate high-voltage circuits. To prevent electric shock, always follow the procedure described in the appropriate service information .

Refer to PRECAUTION [08/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

To prevent electric shock, wear insulated gloves when working on wire harnesses and components of the high voltage system.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

When the cable is disconnected from the negative (-) auxiliary battery terminal and the security lock setting has been enabled, multi-display operations will be disabled upon next startup unless the password is entered. Be sure to check the security lock setting before disconnecting the cable from the negative (-) auxiliary battery terminal.
Refer to BEFORE DISCONNECTING BATTERY [10/2022 - ]
To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
Refer to INSPECTION MODE PROCEDURE [10/2022 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted.	Refer to PRECAUTION [10/2022 - ]
Lighting System (EXT)	for Gasoline Model: Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. except Gasoline Model: Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [10/2022 - ]
Front Camera System
Adaptive High Beam System

LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Back Door System	Reset back door close position	Refer to INITIALIZATION [10/2022 - ]
Air Conditioning System	for PHEV Model: After the ignition switch is turned to ON, the servo motor and cooler expansion valve standard position is recognized. except PHEV Model: After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Effect/Inoperative Function when Necessary Procedure not Performed

Necessary Procedure

Link

Power Back Door System

Reset back door close position

Refer to INITIALIZATION [10/2022 - ]

Air Conditioning System

for PHEV Model:

After the ignition switch is turned to ON, the servo motor and cooler expansion valve standard position is recognized.

except PHEV Model:

After the ignition switch is turned to ON, the servo motor standard position is recognized.

COMPONENTS (REMOVAL)

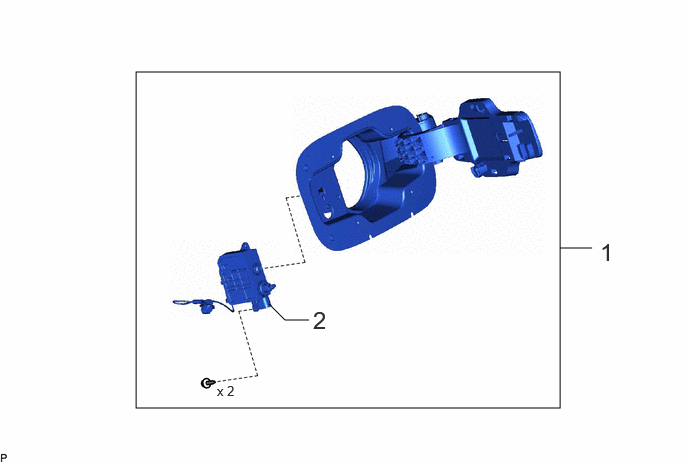

Fig 1: Charge Lid Opener Motor Assembly Removal Components

Procedure		Part Name Code
1	BATTERY CHARGER CONNECTOR OPENING LID SUB-ASSEMBLY	58409E	-	-	-
2	CHARGE LID LOCK WITH MOTOR LOCK ASSEMBLY	77030B	-	-	-
