Caution / Notice / Hint

HINT:

• Use the same procedure for the RH side and LH side.
• The following procedure is for the LH side.

COMPONENTS (REASSEMBLY)

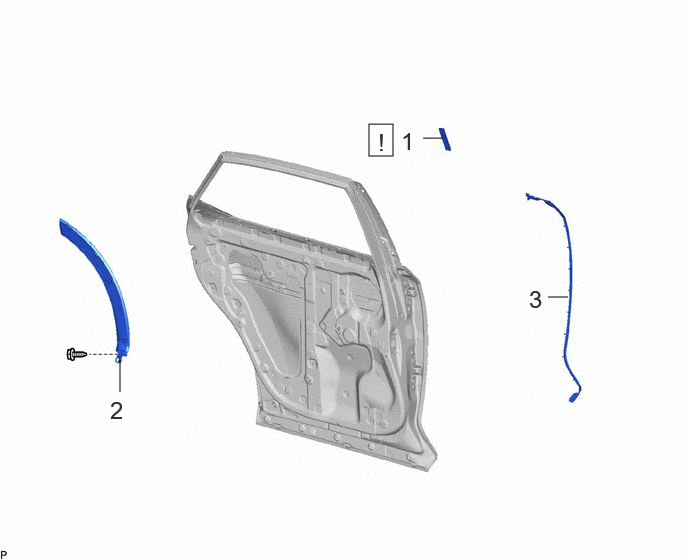

Fig 1: Rear Door Reassembly Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	BLE DOOR DIGITAL KEY RECEIVER ASSEMBLY (for Rear Door)	-	See step  1	-	-
2	REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY	75078	-	-	-
3	REAR DOOR NO. 3 WEATHERSTRIP	67896	-	-	-

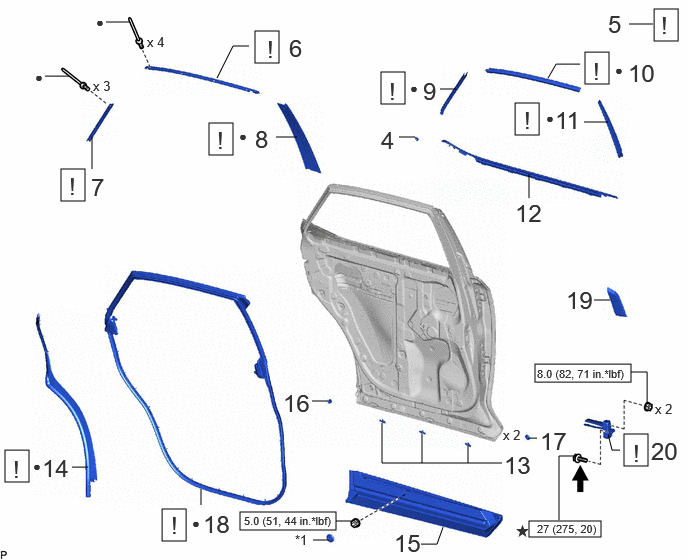

Fig 2: Rear Door Reassembly Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
4	REAR DOOR FRONT OUTSIDE SEAL	67846A	-	-	-
5	REPAIR INSTRUCTION	-	See step  5	-	-
6	REAR DOOR WINDOW FRAME UPPER MOULDING	75764A	See step  6	-	-
7	REAR DOOR WINDOW FRAME REAR MOULDING	75766A	See step  7	-	-
8	REAR DOOR WINDOW FRAME MOULDING SUB-ASSEMBLY	75708	See step  8	-	-
9	REAR INNER BLACK OUT TAPE	75954A	See step  9	-	-
10	REAR DOOR OUTSIDE STRIPE	75988E	See step  10	-	-
11	REAR DOOR LOWER OUTSIDE STRIPE	75978H	See step  11	-	-
12	REAR DOOR BELT MOULDING ASSEMBLY	75740	-	-	-
13	REAR DOOR DUST PROOF SEAL	67837C	-	-	-
14	REAR DOOR PANEL PROTECTOR	67858A	See step  14	-	-
15	REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY	-	-	-	-
16	REAR DOOR PANEL CUSHION	-	-	-	-
17	HOLE PLUG	-	-	-	-
18	REAR DOOR WEATHERSTRIP	67872	See step  18	-	-
19	REAR NO. 2 DOOR FRAME GARNISH	67676C	-	-	-
20	REAR DOOR CHECK ASSEMBLY	68640A	See step  20	-	-

*1	HOLE PLUG	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent	*	Precoated part

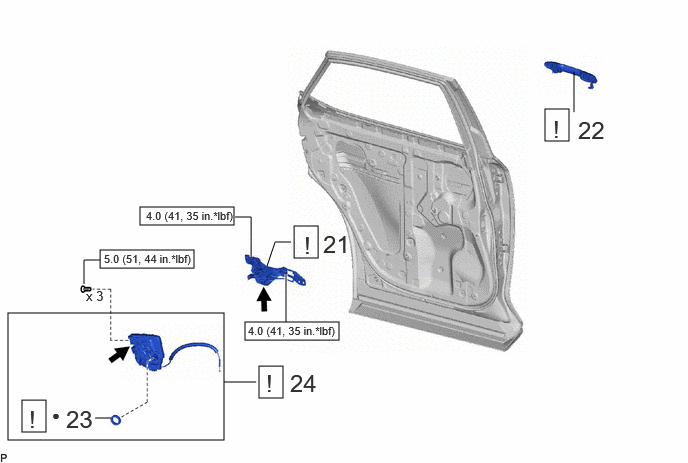

Fig 3: Rear Door Reassembly Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
21	REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY	69204A	See step  21	-	-
22	REAR DOOR OUTSIDE HANDLE ASSEMBLY	69240	See step  22	-	-
23	DOOR LOCK WIRING HARNESS SEAL	69318D	See step  23	-	-
24	REAR DOOR LOCK WITH MOTOR ASSEMBLY WITH COVER	-	See step  24	-	-

	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

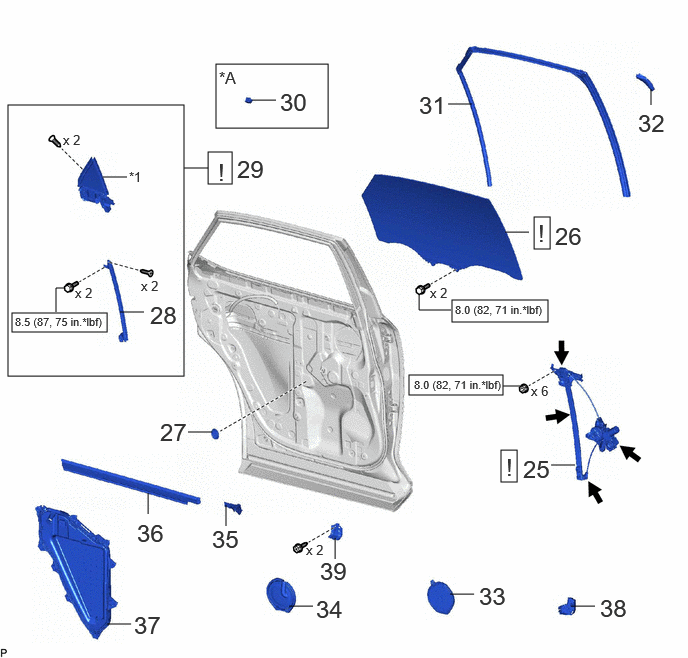

Fig 4: Rear Door Reassembly Components With Torque Specifications (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
25	REAR DOOR WINDOW REGULATOR ASSEMBLY	-	See step  25	-	-
26	REAR DOOR GLASS SUB-ASSEMBLY	68104	See step  26	-	-
27	HOLE PLUG	-	-	-	-
28	REAR DOOR REAR WINDOW GUIDE SUB-ASSEMBLY	67408D	-	-	-
29	REAR DOOR WINDOW GUIDE SUB-ASSEMBLY WITH REAR DOOR REAR GUIDE SEAL	-	See step  29	-	-
30	CURTAIN HOOK	65923E	-	-	-
31	REAR DOOR GLASS RUN	68152C	-	-	-
32	REAR DOOR FRAME GARNISH	67674A	-	-	-
33	WIRE HARNESS SERVICE HOLE COVER BRACKET	-	-	-	-
34	REAR NO. 2 DOOR SERVICE HOLE COVER	67844A	-	-	-
35	REAR DOOR FRONT BELT SEAL	68197A	-	-	-
36	REAR DOOR INNER GLASS WEATHERSTRIP	68174A	-	-	-
37	REAR DOOR SERVICE HOLE COVER	67842E	-	-	-
38	REAR DOOR LOCK CONTROL BELLCRANK SUB-ASSEMBLY	69701H	-	-	-
39	REAR DOOR ARMREST SET BRACKET	67646A	-	-	-

*A	w/ Sunshade	-	-
*1	REAR DOOR REAR GUIDE SEAL ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque		MP grease

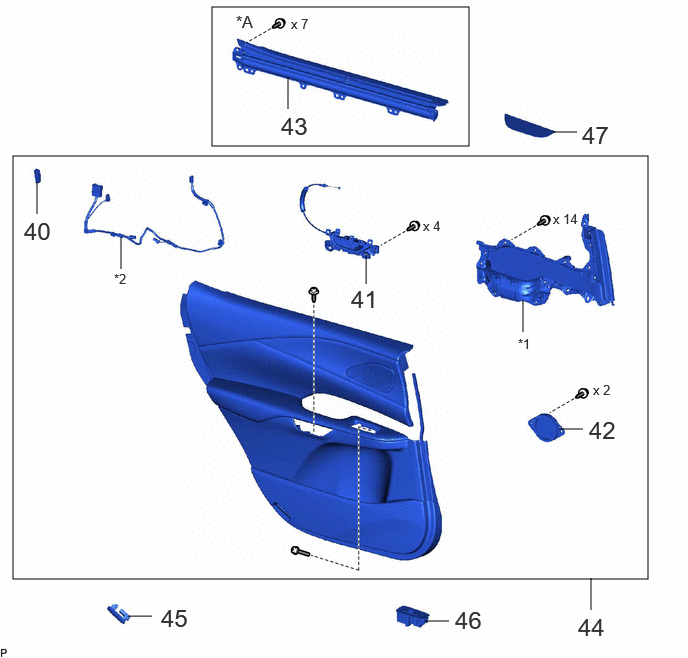

Fig 5: Rear Door Reassembly Components (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
40	REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY	81080G	-	-	-
41	REAR DOOR INSIDE HANDLE SUB-ASSEMBLY	69206C	-	-	-
42	REAR SPEAKER ASSEMBLY	86160B	-	-	-
43	REAR CURTAIN SUB-ASSEMBLY	65908D	-	-	-
44	REAR DOOR TRIM BOARD SUB-ASSEMBLY	67604	-	-	-
45	COURTESY LIGHT ASSEMBLY	81230	-	-	-
46	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL	-	-	-	-
47	REAR DOOR ARMREST COVER	74262	-	-	-

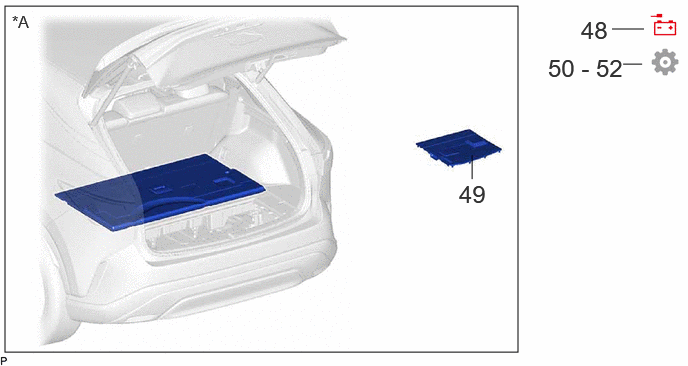

Fig 6: Rear Door Reassembly Components (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
48	CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
49	BATTERY SERVICE COVER PLATE	58491E	-	-	-
50	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-	See step  50
51	INITIALIZE POWER WINDOW CONTROL SYSTEM	-	-	-	See step  51
52	INSPECT POWER WINDOW OPERATION	-	-	-	See step  52
