The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear door disassembly/reassembly are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Auxiliary battery terminal is disconnected/reconnected | Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly | Parking Support Brake System* | Refer to INITIALIZATION [10/2022 - ] |
|
Initialize power window control system |
|
Refer to REGISTRATION [10/2022 - ] |
*: When "[Parking Support Brake System icon] System Stopped See Owner's Manual" is displayed on the multi-information display.*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
NOTE:
- After the ignition switch is turned off, the audio and visual system records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 3 minutes before disconnecting the cable from the negative (-) auxiliary battery terminal.
- When the cable is disconnected from the negative (-) auxiliary battery terminal and the security lock setting has been enabled, multi-display operations will be disabled upon next startup unless the password is entered. Be sure to check the security lock setting before disconnecting the cable from the negative (-) auxiliary battery terminal.
- To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted. Refer to PRECAUTION [10/2022 - ] Front Camera System except Gasoline Model: - Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.
for Gasoline Model:- Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.
Refer to INITIALIZATION [10/2022 - ] Adaptive High Beam System LIGHTING SYSTEM (w/ Automatic Headlight Beam Level Control System) - Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power Back Door System Reset back door close position Refer to INITIALIZATION [10/2022 - ] Air Conditioning System except PHEV Model: - After the ignition switch is turned to ON, the servo motor standard position is recognized.
for PHEV Model:- After the ignition switch is turned to ON, the servo motor and cooler expansion valve standard position is recognized.
-
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.

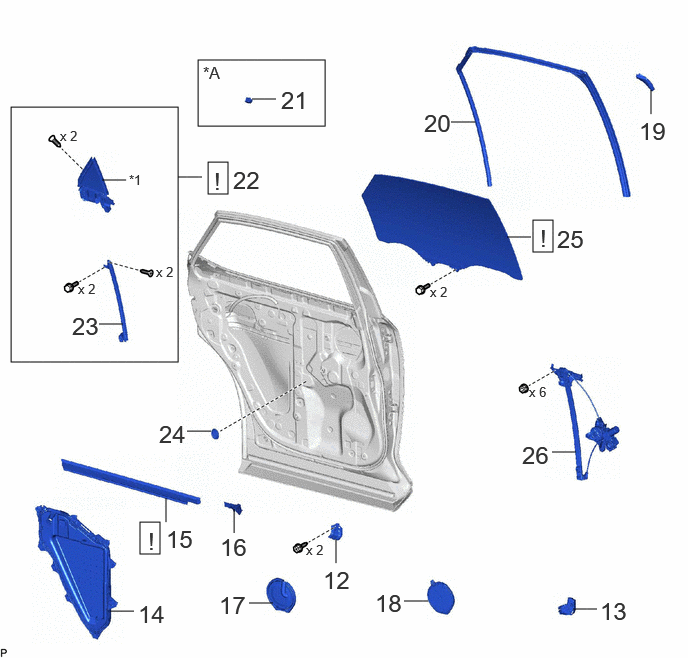

COMPONENTS (DISASSEMBLY)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | See step 1 | - | - |
| 2 | BATTERY SERVICE COVER PLATE | 58491E | - | - | - |
| 3 | DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| *A | except Gasoline Model | - | - |

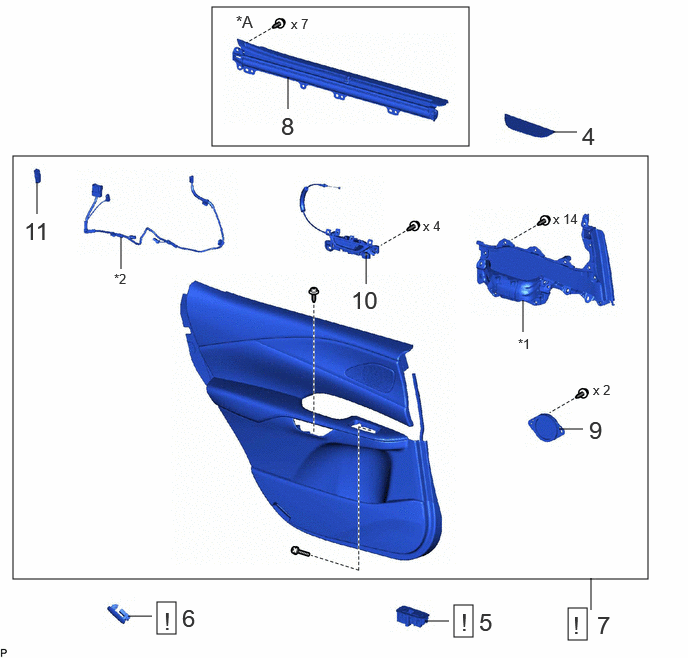

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 4 | REAR DOOR ARMREST COVER | 74262 | - | - | - |
| 5 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL | - | See step 5 | - | - |
| 6 | COURTESY LIGHT ASSEMBLY | 81230 | See step 6 | - | - |
| 7 | REAR DOOR TRIM BOARD SUB-ASSEMBLY | 67604 | See step 7 | - | - |
| 8 | REAR CURTAIN SUB-ASSEMBLY | 65908D | - | - | - |
| 9 | REAR SPEAKER ASSEMBLY | 86160B | - | - | - |
| 10 | REAR DOOR INSIDE HANDLE SUB-ASSEMBLY | 69206C | - | - | - |
| 11 | REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY | 81080G | - | - | - |
| *A | w/ Sunshade | - | - |
| *1 | PULL HANDLE | *2 | REAR DOOR WIRE |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 12 | REAR DOOR ARMREST SET BRACKET | 67646A | - | - | - |
| 13 | REAR DOOR LOCK CONTROL BELLCRANK SUB-ASSEMBLY | 69701H | - | - | - |
| 14 | REAR DOOR SERVICE HOLE COVER | 67842E | - | - | - |
| 15 | REAR DOOR INNER GLASS WEATHERSTRIP | 68174A | See step 15 | - | - |
| 16 | REAR DOOR FRONT BELT SEAL | 68197A | - | - | - |
| 17 | REAR NO. 2 DOOR SERVICE HOLE COVER | 67844A | - | - | - |
| 18 | WIRE HARNESS SERVICE HOLE COVER BRACKET | - | - | - | - |
| 19 | REAR DOOR FRAME GARNISH | 67674A | - | - | - |
| 20 | REAR DOOR GLASS RUN | 68152C | - | - | - |
| 21 | CURTAIN HOOK | 65923E | - | - | - |
| 22 | REAR DOOR WINDOW GUIDE SUB-ASSEMBLY WITH REAR DOOR REAR GUIDE SEAL | - | See step 22 | - | - |
| 23 | REAR DOOR REAR WINDOW GUIDE SUB-ASSEMBLY | 67408D | - | - | - |
| 24 | HOLE PLUG | - | - | - | - |
| 25 | REAR DOOR GLASS SUB-ASSEMBLY | 68104 | See step 25 | - | - |
| 26 | REAR DOOR WINDOW REGULATOR ASSEMBLY | - | - | - | - |
| *A | w/ Sunshade | - | - |
| *1 | REAR DOOR REAR GUIDE SEAL ASSEMBLY | - | - |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

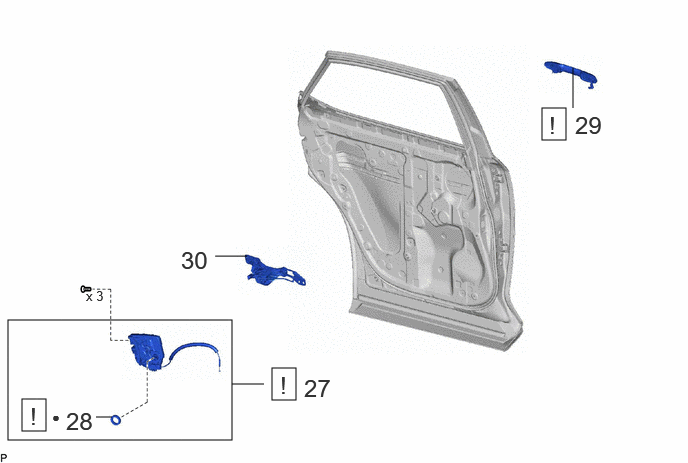

| 27 | REAR DOOR LOCK WITH MOTOR ASSEMBLY WITH COVER | - | See step 27 | - | - |
| 28 | DOOR LOCK WIRING HARNESS SEAL | 69318D | See step 28 | - | - |
| 29 | REAR DOOR OUTSIDE HANDLE ASSEMBLY | 69240 | See step 29 | - | - |
| 30 | REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY | 69204A | - | - | - |
| • | Non-reusable part | - | - |

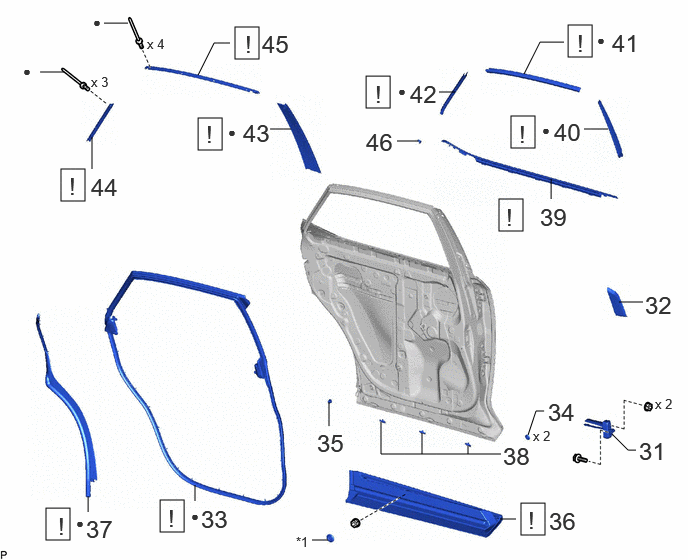

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 31 | REAR DOOR CHECK ASSEMBLY | 68640A | - | - | - |
| 32 | REAR NO. 2 DOOR FRAME GARNISH | 67676C | - | - | - |
| 33 | REAR DOOR WEATHERSTRIP | 67872 | See step 33 | - | - |
| 34 | HOLE PLUG | - | - | - | - |
| 35 | REAR DOOR PANEL CUSHION | - | - | - | - |
| 36 | REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY | - | See step 36 | - | - |
| 37 | REAR DOOR PANEL PROTECTOR | 67858A | See step 37 | - | - |
| 38 | REAR DOOR DUST PROOF SEAL | 67837C | - | - | - |
| 39 | REAR DOOR BELT MOULDING ASSEMBLY | 75740 | See step 39 | - | - |
| 40 | REAR DOOR LOWER OUTSIDE STRIPE | 75978H | See step 40 | - | - |
| 41 | REAR DOOR OUTSIDE STRIPE | 75988E | See step 41 | - | - |
| 42 | REAR INNER BLACK OUT TAPE | 75954A | See step 42 | - | - |
| 43 | REAR DOOR WINDOW FRAME MOULDING SUB-ASSEMBLY | 75708 | See step 43 | - | - |
| 44 | REAR DOOR WINDOW FRAME REAR MOULDING | 75766A | See step 44 | - | - |
| 45 | REAR DOOR WINDOW FRAME UPPER MOULDING | 75764A | See step 45 | - | - |
| 46 | REAR DOOR FRONT OUTSIDE SEAL | 67846A | - | - | - |
| *1 | HOLE PLUG | - | - |
| • | Non-reusable part | - | - |

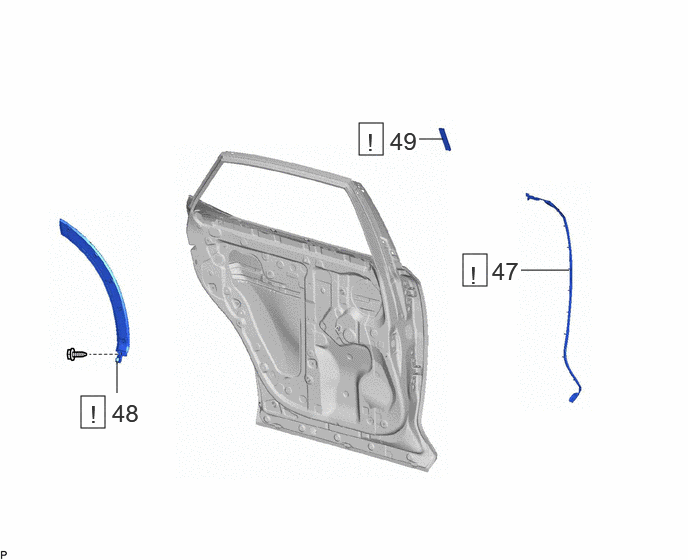

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 47 | REAR DOOR NO. 3 WEATHERSTRIP | 67896 | See step 47 | - | - |
| 48 | REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY | 75078 | See step 48 | - | - |
| 49 | BLE DOOR DIGITAL KEY RECEIVER ASSEMBLY (for Rear Door) | - | See step 49 | - | - |
