Caution / Notice / Hint

COMPONENTS (REASSEMBLY)

Fig 1: Back Door Reassembly Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	NO. 1 AMPLIFIER ANTENNA ASSEMBLY	86300B	-	-	-
2	NO. 5 ANTENNA CORD SUB-ASSEMBLY	86101R	See step 2	-	-

N.m (kgf/cm, ft.lbf): Specified torque

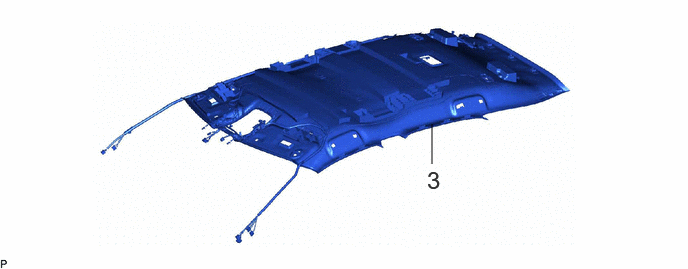

Fig 2: Back Door Reassembly Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
3	ROOF HEADLINING ASSEMBLY	-	-	-	-

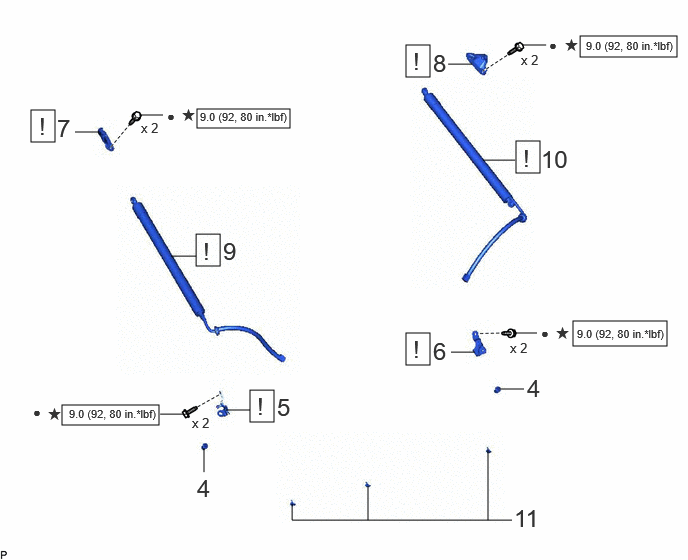

Fig 3: Back Door Reassembly Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
4	BACK DOOR STAY STOPPER	68984	-	-	-
5	BACK DOOR DAMPER STAY LOWER BRACKET LH	68948	See step 5	-	-
6	BACK DOOR DAMPER STAY LOWER BRACKET RH	68947	See step 6	-	-
7	BACK DOOR DAMPER STAY UPPER BRACKET LH	68946	See step 7	-	-
8	BACK DOOR DAMPER STAY UPPER BRACKET RH	68945	See step 8	-	-
9	POWER BACK DOOR UNIT ASSEMBLY LH	68920A	See step 9	-	-
10	POWER BACK DOOR UNIT ASSEMBLY RH	68910B	See step 10	-	-
11	BACK DOOR DUST PROOF SEAL	67837N	-	-	-

	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
*	Precoated part	-	-

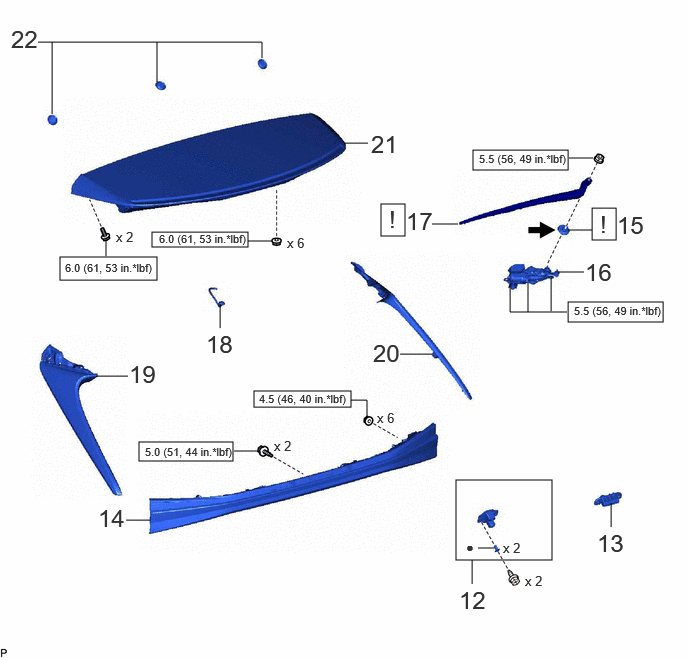

Fig 4: Back Door Reassembly Components With Torque Specifications (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
12	REAR TELEVISION CAMERA ASSEMBLY	86790D	-	-	-
13	BACK DOOR OPENER SWITCH ASSEMBLY	84840G	-	-	-
14	REAR LIGHT ASSEMBLY	-	-	-	-
15	REAR WIPER MOTOR GROMMET	85143R	See step 15	-	-
16	REAR WIPER MOTOR ASSEMBLY	85110R	-	-	-
17	REAR WIPER ARM AND BLADE ASSEMBLY	-	See step 17	-	-
18	REAR WASHER NOZZLE	85345R	-	-	-
19	REAR SPOILER SIDE PROTECTOR SUB-ASSEMBLY LH	76808	-	-	-
20	REAR SPOILER SIDE PROTECTOR SUB-ASSEMBLY RH	76807	-	-	-
21	REAR SPOILER SUB-ASSEMBLY	76085	-	-	-
22	HOLE PLUG	-	-	-	-

	N.m (kgf/cm, ft.lbf): Specified torque		MP grease
•	Non-reusable part	-	-

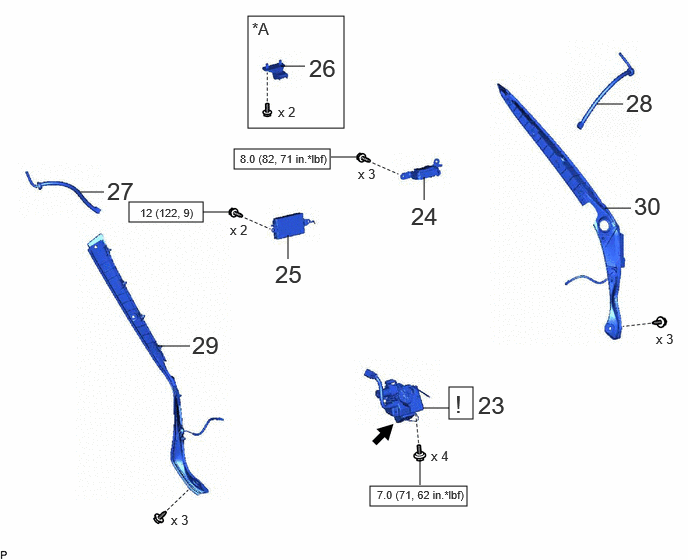

Fig 5: Back Door Reassembly Components With Torque Specifications (5 Of 6)

Callout - Procedure		Part Name Code
23	BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH	69350P	See step 23	-	-
24	BACK DOOR WEIGHT	67372A	-	-	-
25	MULTIPLEX NETWORK DOOR ECU	89222A	-	-	-
26	INNER MIRROR CAMERA ASSEMBLY	867C0B	-	-	-
27	CONNECT POWER BACK DOOR UNIT ASSEMBLY LH	68920A	-	-	-
28	CONNECT POWER BACK DOOR UNIT ASSEMBLY RH	68910B	-	-	-
29	POWER BACK DOOR SENSOR ASSEMBLY LH	84280D	-	-	-
30	POWER BACK DOOR SENSOR ASSEMBLY RH	84270G	-	-	-

*A	w/ Digital Inner Mirror	-	-
	N.m (kgf/cm, ft.lbf): Specified torque		MP grease

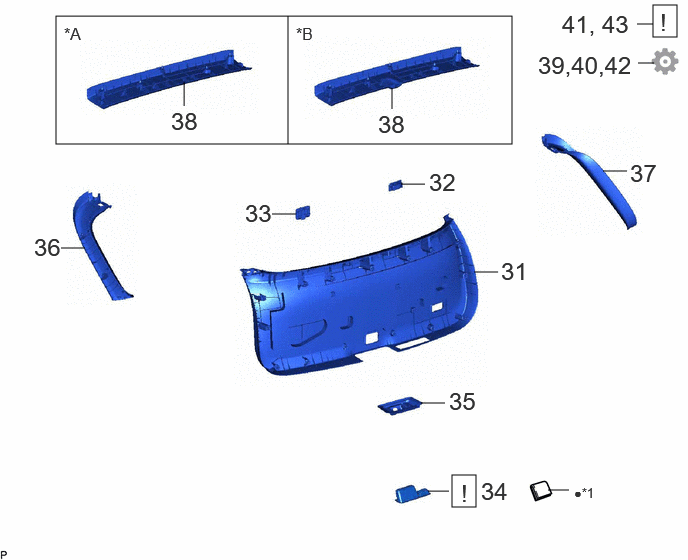

Fig 6: Back Door Reassembly Components (6 Of 6)

Procedure		Part Name Code
31	BACK DOOR TRIM BOARD ASSEMBLY	67750	-	-	-
32	NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY	81330A	-	-	-
33	BACK DOOR SERVICE HOLE COVER	67847A	-	-	-
34	BACK DOOR INSIDE HANDLE	69212C	See step 34	-	-
35	BACK DOOR LOCK COVER	69321	-	-	-
36	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
37	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
38	BACK DOOR UPPER TRIM COVER	67765B	-	-	-
39	ADJUST REAR WASHER NOZZLE	85345R	-	-	See step 39
40	INITIALIZE POWER BACK DOOR SYSTEM	-	-	-	See step 40
41	INSPECT POWER BACK DOOR SYSTEM	-	See step 41	-	-
42	PERFORM CALIBRATION	-	-	-	See step 42
43	ADJUST BACK DOOR	-	See step 43	-	-
