On-Vehicle Inspection [10/2022 - ]: Procedure
- INSPECT HOOD SUB-ASSEMBLY

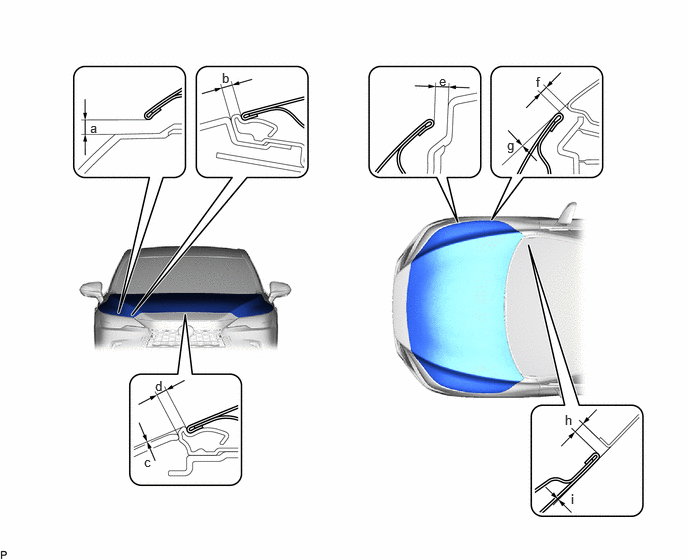

- Check that the clearance measurements of areas a through g are within each standard range.STANDARD CLEARANCE
Area Measurement Area Measurement a 4.35 to 8.35 mm (0.171 to 0.329 in.) b 2.2 to 6.2 mm (0.087 to 0.244 in.) c -2.0 to 2.0 mm (-0.079 to 0.079 in.) d 1.9 to 5.9 mm (0.075 to 0.232 in.) e 4.75 mm (0.187 in.) f 2.4 to 5.4 mm (0.094 to 0.213 in.) g -1.5 to 1.5 mm (-0.059 to 0.059 in.) h 2.7 to 5.7 mm (0.106 to 0.224 in.) i -1.4 to 1.6 mm (-0.055 to 0.063 in.) - -
- Check that the clearance measurements of areas a through g are within each standard range.
