Disassembly [10/2022 - ]: Procedure

  1. REMOVE HOOD INSULATOR

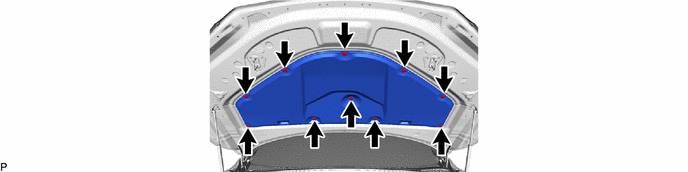

    1. GTY1134015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE HOOD LOCK STRIKER ASSEMBLY

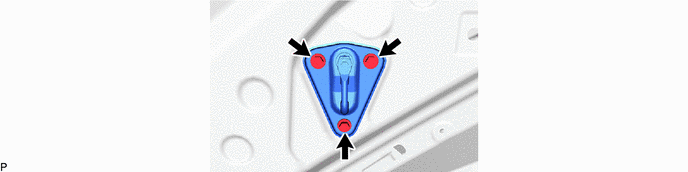

    1. GTY1136773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Use the same procedure for the opposite side.
  3. REMOVE HOOD SUPPORT ASSEMBLY LH
    See step  1
  4. REMOVE HOOD SUPPORT ASSEMBLY RH
    HINT:
    Use the same procedure for the LH side.
  5. REMOVE HOOD STAY BRACKET LH

    See step  2

  6. REMOVE HOOD STAY BRACKET RH
    1. Use the same procedure for the LH side.
