The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during hood lock control cable assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Front bumper assembly* | Front television camera view adjustment | Panoramic View Monitor System | Refer to CALIBRATION [10/2022 - ] |
| Advanced Park | Refer to CALIBRATION [10/2022 - ] | ||
Replacement or removal and installation of 2 or more parts:
|
Television camera view adjustment | Panoramic View Monitor System | Refer to CALIBRATION [10/2022 - ] |
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

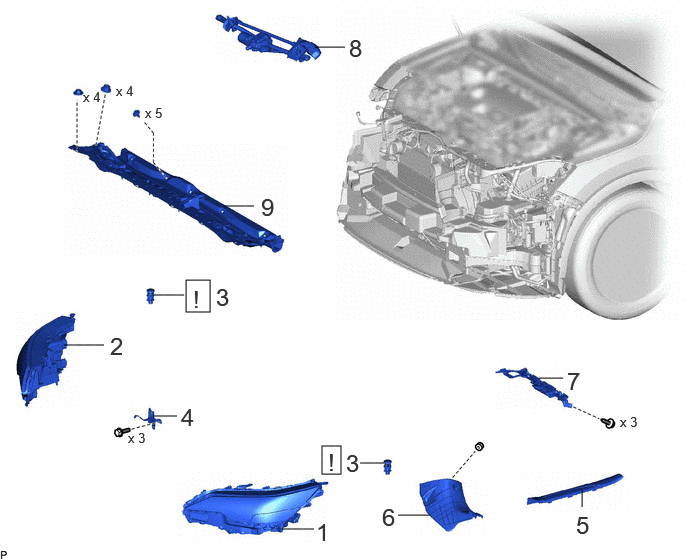

| 1 | HEADLIGHT ASSEMBLY LH | - | - | - | - |
| 2 | HEADLIGHT ASSEMBLY RH | - | - | - | - |
| 3 | HOOD SUPPORT TENSION SPRING | 53430A | See step 3 | - | - |
| 4 | HOOD AUXILIARY CATCH HOOK ASSEMBLY | 53550 | - | - | - |
| 5 | FRONT DOOR SCUFF PLATE LH | 67914B | - | - | - |
| 6 | COWL SIDE TRIM BOARD LH | 62112 | - | - | - |
| 7 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| 8 | WINDSHIELD WIPER MOTOR AND LINK | - | - | - | - |
| 9 | OUTER COWL TOP PANEL SUB-ASSEMBLY | 55701J | - | - | - |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

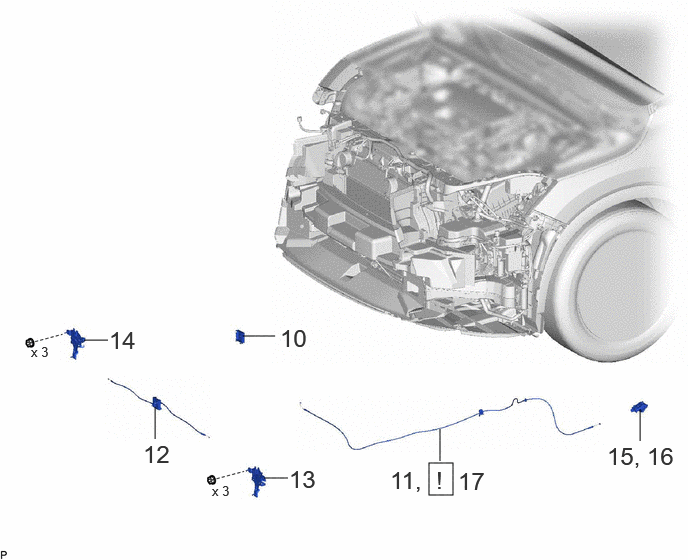

| 10 | HOOD LOCK CONTROL COVER | 53641A | - | - | - |
| 11 | DISCONNECT HOOD LOCK CONTROL CABLE ASSEMBLY | 53630 | - | - | - |
| 12 | HOOD LOCK CONTROL JUNCTION ASSEMBLY | 53640 | - | - | - |
| 13 | HOOD LOCK ASSEMBLY LH | 53520B | - | - | - |
| 14 | HOOD LOCK ASSEMBLY | 53510 | - | - | - |
| 15 | DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | 53601 | - | - | - |
| 16 | REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | 53601 | - | - | - |
| 17 | HOOD LOCK CONTROL CABLE ASSEMBLY | 53630 | See step 17 | - | - |
