Removal [10/2022 - ]: Procedure

  1. REMOVE FRONT WHEEL LH

    Refer to REMOVAL [10/2022 - ]

  2. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY LH

    Refer to REMOVAL [10/2022 - ]

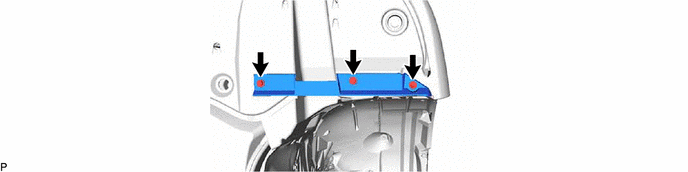

  3. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
    1. GTY1134586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

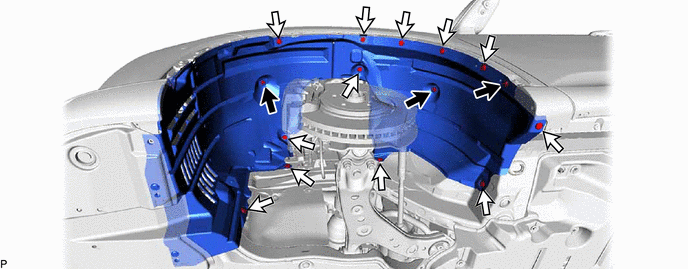

  4. REMOVE FRONT FENDER LINER LH
    1. GTY1134499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw Clip

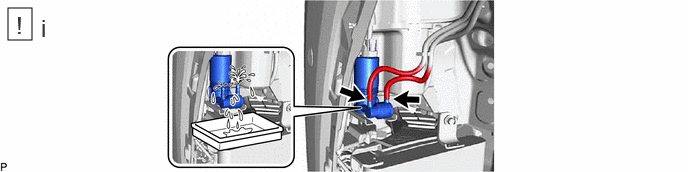

  5. DRAIN WASHER FLUID
    1. GTY1137014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 2 washer hoses from the windshield washer motor and pump assembly, and drain the washer fluid.

        HINT:

        Use a container to collect the washer fluid.

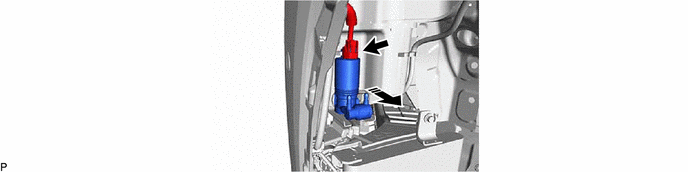

  6. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
    1. GTY1133945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

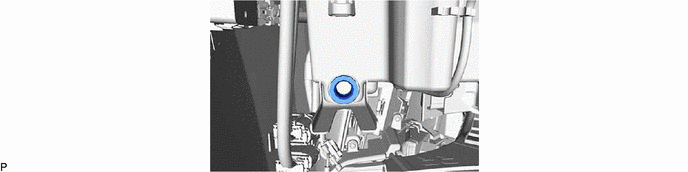

  7. REMOVE WINDSHIELD WASHER JAR PACKING

    HINT:

    Perform this procedure only when replacement of the windshield washer jar packing is necessary.

    1. GTY1134581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
