DTC U11D0-87: Lost Local Communication with MET Missing Message; DTC U11D3-87: Lost Local Communication with Qi Missing Message [10/2022 - ]: Wiring Diagram

w/o Headup display

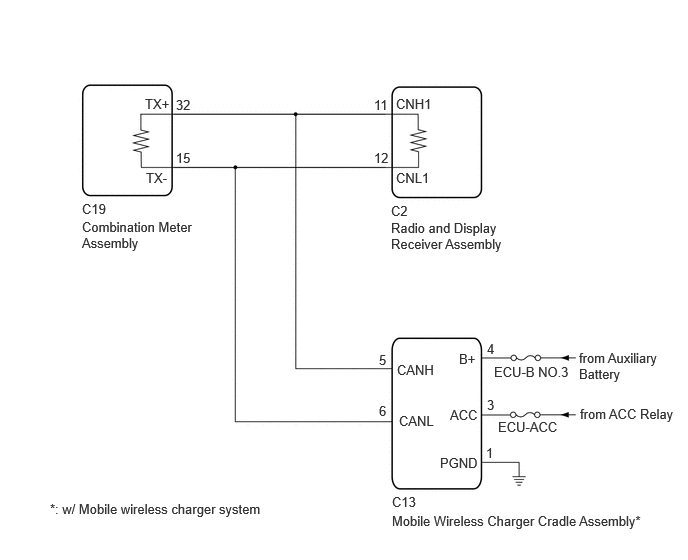

GTY1135307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Headup display

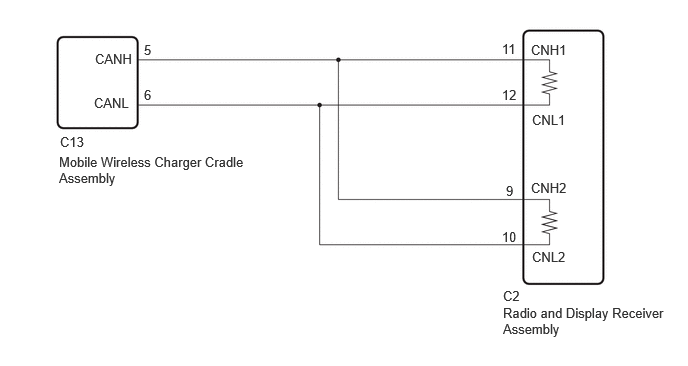

GTY1124712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
