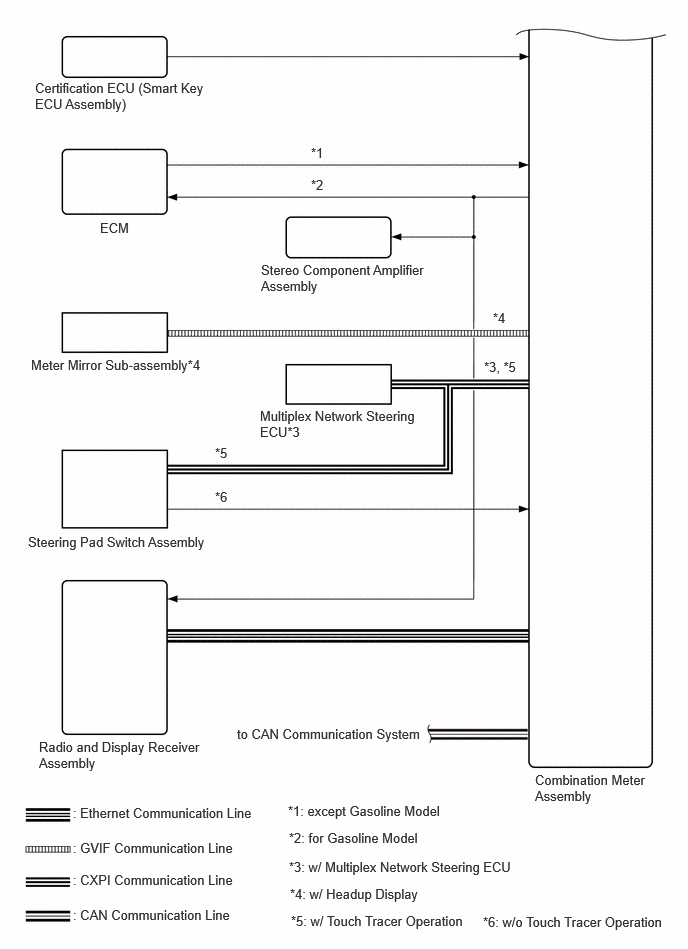

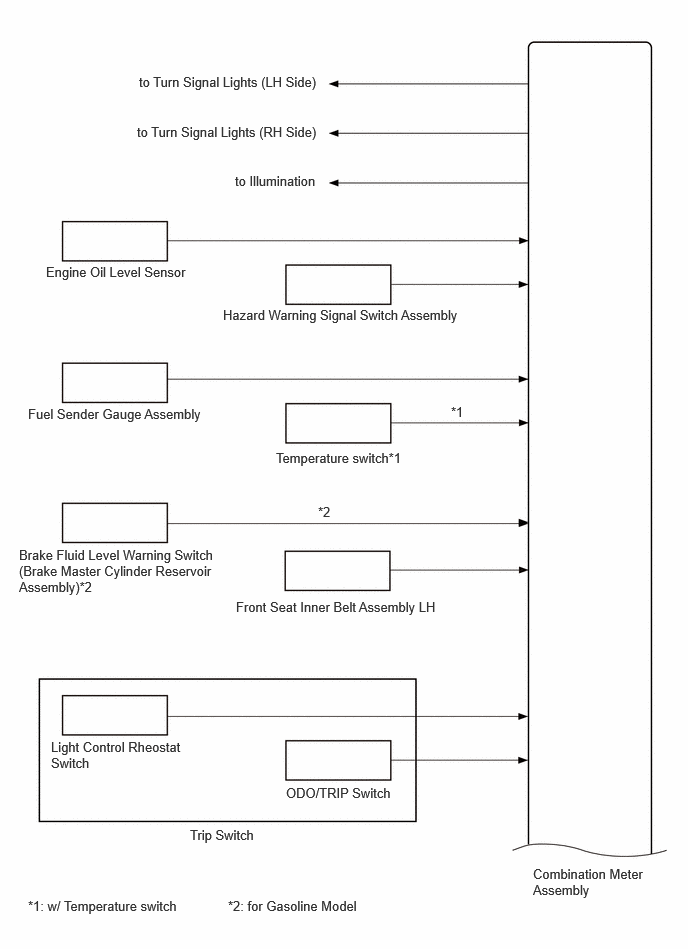

System Diagram [10/2024 - ]

HINT:

Refer to System Diagram of CAN Communication System.

except Gasoline Model: Refer to SYSTEM DIAGRAM [08/2023 - ]

for Gasoline Model: Refer to SYSTEM DIAGRAM [08/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
