Removal [08/2023 - ]: Procedure

  1. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY
  2. REMOVE REAR UPPER CONTROL ARM ASSEMBLY

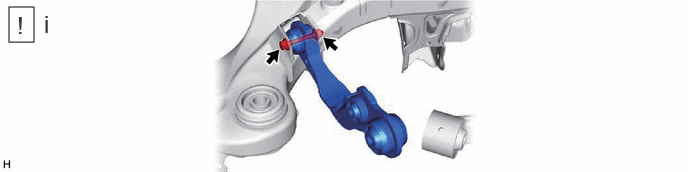

    1. GTY1122922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt, nut and rear upper control arm assembly from the rear suspension member sub-assembly.
        NOTE:

        Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

  3. REMOVE REAR UPPER NO. 2 CONTROL ARM ASSEMBLY

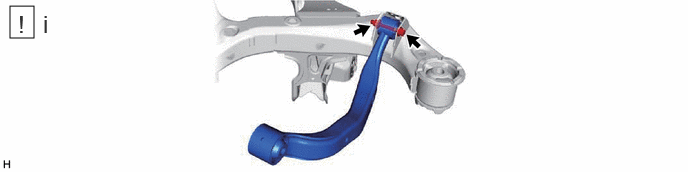

    1. GTY1124690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt, nut and rear upper No. 2 control arm assembly from the rear suspension member sub-assembly.
        NOTE:

        Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
