Removal [08/2023 - ]: Procedure

Refer to REMOVAL [08/2023 - ]

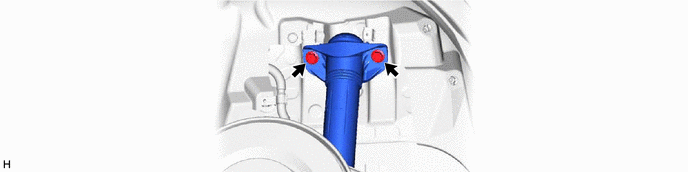

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Using a screwdriver with its tip wrapped with protective tape, remove the rear shock absorber cap from the rear shock absorber assembly.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Turn

   *b

   Hold

   1. Secure the rear shock absorber assembly in a vise using aluminum plates.
      NOTE:

      Do not overtighten the vise.

   2. Using a hexagon socket wrench (6 mm), hold the piston rod of the rear shock absorber assembly and remove the hexagon nut using SST.
      • SST: 09729-00170
   3. Remove the rear suspension support assembly from the rear shock absorber assembly.
