Installation [10/2022 - ]: Procedure

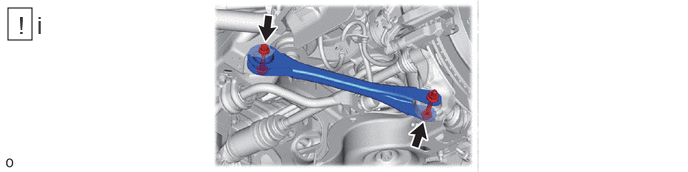

  1. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY
    1. GTY1123142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Temporarily install the rear No. 1 suspension arm assembly to the rear axle carrier sub-assembly and rear suspension member sub-assembly with the bolts.

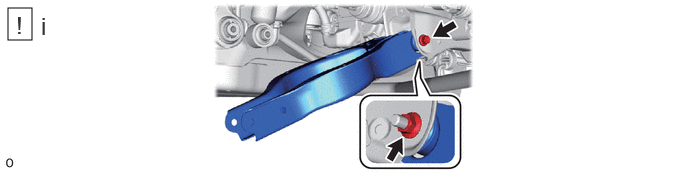

  2. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY
    1. GTY1126430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Temporarily install the rear No. 2 suspension arm assembly to the rear suspension member sub-assembly with the bolt and nut.
        NOTE:
        • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
        • Insert the bolt from the rear of the vehicle.
  3. INSTALL REAR LOWER COIL SPRING INSULATOR
  4. INSTALL REAR COIL SPRING

    Refer to INSTALLATION [10/2022 - 10/2024] , or refer to INSTALLATION [10/2024 - ]

  5. INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY

    Torque: 50 N.m (510 kgf/cm, 37 ft.lbf)

  6. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    Refer to ADJUSTMENT [10/2022 - 08/2023] , or refer to ADJUSTMENT [08/2023 - ]

  7. PERFORM INITIALIZATION
    Parking Assist Monitor System Refer to CALIBRATION [10/2022 - ]
    Panoramic View Monitor System Refer to CALIBRATION [10/2022 - ]
    Advanced Park Refer to CALIBRATION [10/2022 - ]
    Lighting System (w/ Automatic Headlight Beam Level Control System) Refer to INITIALIZATION [10/2022 - ]
