Installation [10/2022 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

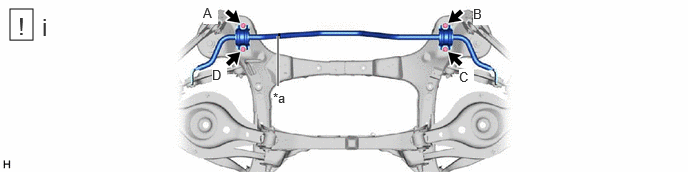

   *a

   Identification Mark

   -

   -

   1. Install the rear stabilizer bar to the rear suspension member sub-assembly with the 4 bolts.

      Torque: 80 N.m (816 kgf/cm, 59 ft.lbf)

      NOTE:

      Temporarily tighten the bolt (A) and then fully tighten the 4 bolts in the order of (B), (C), (D) and (A).

Refer to INSTALLATION [10/2022 - ]
