Removal [08/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2022 - ]
  2. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. REMOVE BATTERY SERVICE COVER PLATE (except Gasoline Model)

    Refer to PROCEDURE - Step 3

  5. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If an airbag deploys for any reason, it may cause a serious injury.
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. for T24A-FTS (for Gasoline Model):

      Refer to PROCEDURE - Step 2

    2. for T24A-FTS (for 1Motor-HEV Model):

      Refer to PROCEDURE - Step 3

    3. for A25A-FXS:

      Refer to PROCEDURE - Step 3

  6. REMOVE FRONT DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 17

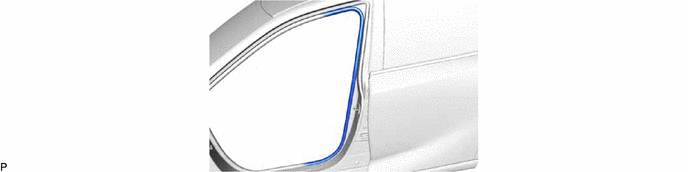

  7. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP
    1. GTY1126366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 21

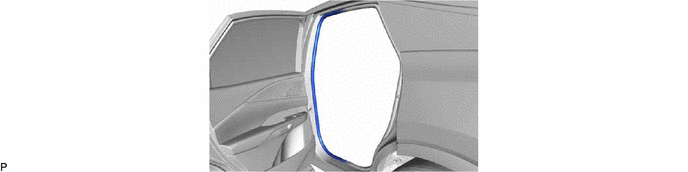

  9. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
    1. GTY1126371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

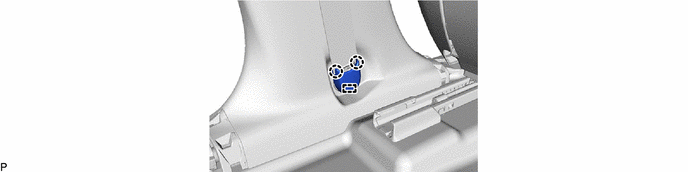

  10. REMOVE LAP BELT OUTER ANCHOR COVER
    1. GTY1126370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

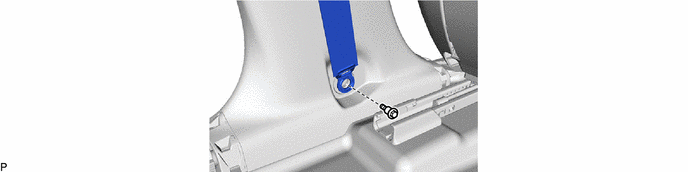

  11. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY
    1. GTY1126369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE CENTER PILLAR LOWER GARNISH

    Refer to PROCEDURE - Step 27

  13. REMOVE CENTER PILLER GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 28

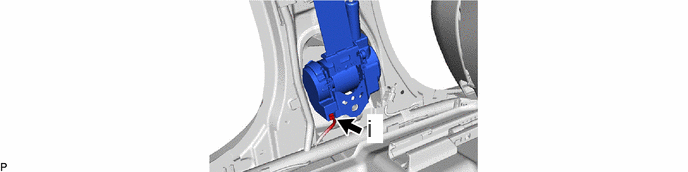

  14. REMOVE FRONT SEAT OUTER BELT ASSEMBLY
    1. GTY1123419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
    2. GTY1073807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the nut and disconnect the shoulder anchor of the front seat outer belt assembly.
      2. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.

        HINT:

        Tape the screwdriver tip before use.

      3. Remove the bolt.
      4. Disengage the 2 guides to remove the front seat outer belt assembly.
  15. REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the front shoulder belt anchor adjuster assembly is necessary.

    1. GTY1129171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
