Installation [10/2022 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2025 Lexus RX 500h, 2025 Lexus RX 350, 2024 Lexus RX 500h, 2024 Lexus RX 350, and 2023 Lexus RX 500h. However, it is still accessible from the selected car via links, so may be relevant.
- CONNECT VACUUM HOSE
- INSTALL WIRE HARNESS CLAMP BRACKET
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
- INSTALL REAR ENGINE MOUNTING INSULATOR

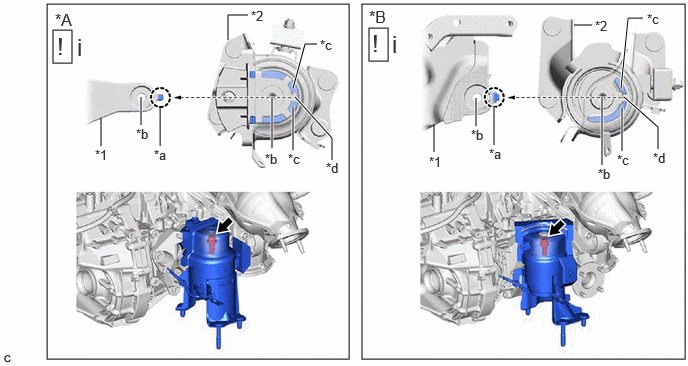

*A for 2WD *B for AWD *1 Rear Engine Mounting Bracket *2 Rear Engine Mounting Insulator *a Protrusion *b Hole *c Wall *d Gap - Align and insert the protrusion of the rear engine mounting bracket into the gap between the 2 inner walls of the rear engine mounting insulator to align the hole of the rear engine mounting bracket with the hole of the rear engine mounting insulator, and install the rear engine mounting insulator with the bolt.
Torque: 72 N*m (734 kgf*cm, 53 ft.*lbf)
- Align and insert the protrusion of the rear engine mounting bracket into the gap between the 2 inner walls of the rear engine mounting insulator to align the hole of the rear engine mounting bracket with the hole of the rear engine mounting insulator, and install the rear engine mounting insulator with the bolt.
- INSTALL FRONT FRAME ASSEMBLY
Refer to INSTALLATION [10/2022 - ]
