DTC B1500-13: Fuel Sender Circuit Open [10/2022 - 08/2023]: Procedure

  1. CONFIRM MODEL
    1. Choose the model to be inspected.

      Result

      Result Proceed to
      except Gasoline Model A
      for Gasoline Model B

    Result:

    B

    See step  6

    Result:

    A

    See step  2

  2. READ VALUE USING GTS
    1. Read the Data List according to the display on the GTS.

      Body Electrical > Combination Meter > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Fuel Input Fuel level input Min.: 0.00 L, Max.: 655.35 L or Unset See [Normal Condition 1] The detected value of the fuel sender gauge assembly is displayed.
      HINT:
      Depending on the vehicle, the fuel level standard value varies more or less.

      HINT:

      [Normal Condition 1]: Fuel Input

      1. GTY1068728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Fuel Receiver Gauge
        *b Segments

        Refer to the following table to find the approximate indicated value of the fuel receiver gauge based on the value of the Data List item:

        Data List: Fuel Input (L) Fuel Receiver Gauge Indication
        58.50 or more Segments illuminate 8/8
        51.07 to 58.50 Segments illuminate 7/8
        43.64 to 51.07 Segments illuminate 6/8
        36.21 to 43.64 Segments illuminate 5/8
        28.79 to 36.21 Segments illuminate 4/8
        21.36 to 28.79 Segments illuminate 3/8
        13.93 to 21.36 Segments illuminate 2/8
        6.50 to 13.93 Segments illuminate 1/8
        below 6.50 Segments illuminate 0/8

      Body Electrical > Combination Meter > Data List

      Tester Display
      Fuel Input

      Result

      Result Proceed to
      Fuel level data can be displayed on the GTS A
      Fuel level data cannot be displayed on the GTS B

    Result:

    A

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [10/2022 - 10/2024]

    Result:

    B

    See step  3

  3. INSPECT FUEL SENDER GAUGE ASSEMBLY

    for A25A-FXS: Refer to INSPECTION [10/2022 - ]

    for T24A-FTS (for 1Motor-HEV Model): Refer to INSPECTION [10/2022 - ]

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPLACE FUEL SENDER GAUGE ASSEMBLY

    for A25A-FXS: Refer to REMOVAL [10/2022 - ]

    for T24A-FTS (for 1Motor-HEV Model): Refer to REMOVAL [10/2022 - ]

    Result:

    OK

    See step  4

  4. INSPECT FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.
      GTY1122575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Fuel Suction Tube with Pump and Gauge Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      Z3-1 (FV) - A-3 Always Below 1 Ω Ω
      Z3-2 (FE) - A-2 Always Below 1 Ω Ω
      Z3-3 (FR) - A-1 Always Below 1 Ω Ω
      Z3-1 (FV) - Z3-2 (FE)
      or
      A-3 - A-2      		 Always 10 kΩ or higher kΩ
      Z3-1 (FV) - Z3-3 (FR)
      or
      A-3 - A-1      		 Always 10 kΩ or higher kΩ
      Z3-2 (FE) - Z3-3 (FR)
      or
      A-2 - A-1      		 Always 10 kΩ or higher kΩ

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    for A25A-FXS: Refer to REMOVAL [10/2022 - ]

    for T24A-FTS (for 1Motor-HEV Model): Refer to REMOVAL [10/2022 - ]

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - COMBINATION METER ASSEMBLY)

    Pre-procedure1

    • Disconnect the C19 combination meter assembly connector.
    • Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      Z3-3 (FR) - C19-7 (FR) Always Below 1 Ω Ω
      Z3-2 (FE) - C19-25 (FE&B) Always Below 1 Ω Ω
      Z3-1 (FV) - C19-23 (FV) Always Below 1 Ω Ω
      Z3-3 (FR) or C19-7 (FR) - Body ground Always 10 kΩ or higher kΩ
      Z3-1 (FV) or C19-23 (FV) - Body ground Always 10 kΩ or higher kΩ

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [10/2022 - 10/2024]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  6. READ VALUE USING GTS
    1. Read the Data List according to the display on the GTS.

      Body Electrical > Combination Meter > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Fuel Input Fuel level input Min.: 0.00 L, Max.: 655.35 L or Unset See [Normal Condition 1] The detected value of the fuel sender gauge assembly is displayed.
      HINT:
      Depending on the vehicle, the fuel level standard value varies more or less.

      HINT:

      [Normal Condition 1]: Fuel Input

      1. GTY1068728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Fuel Receiver Gauge
        *b Segments

        Refer to the following table to find the approximate indicated value of the fuel receiver gauge based on the value of the Data List item:

        Data List: Fuel Input (L) Fuel Receiver Gauge Indication
        60.75 or more Segments illuminate 8/8
        53.04 to 60.75 Segments illuminate 7/8
        45.32 to 53.04 Segments illuminate 6/8
        37.61 to 45.32 Segments illuminate 5/8
        29.89 to 37.61 Segments illuminate 4/8
        22.18 to 29.89 Segments illuminate 3/8
        14.46 to 22.18 Segments illuminate 2/8
        6.75 to 14.46 Segments illuminate 1/8
        below 6.75 Segments illuminate 0/8

      Body Electrical > Combination Meter > Data List

      Tester Display
      Fuel Input

      Result

      Result Proceed to
      Fuel level data can be displayed on the GTS A
      Fuel level data cannot be displayed on the GTS B

    Result:

    A

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [10/2022 - 10/2024]

    Result:

    B

    See step  7

  7. INSPECT FUEL SENDER GAUGE ASSEMBLY

    Refer to INSPECTION [10/2022 - ]

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPLACE FUEL SENDER GAUGE ASSEMBLY. Refer to  REMOVAL [10/2022 - ]

    Result:

    OK

    See step  8

  8. INSPECT FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

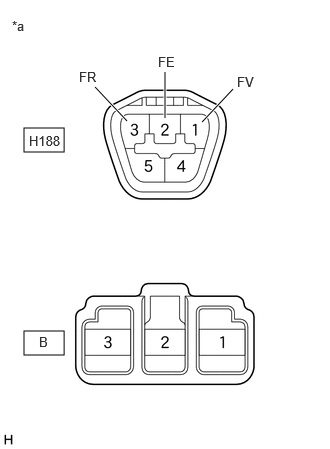

      GTY1122576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Fuel Suction Tube with Pump and Gauge Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      H188-1 (FV) - B-3 Always Below 1 Ω Ω
      H188-2 (FE) - B-2 Always Below 1 Ω Ω
      H188-3 (FR) - B-1 Always Below 1 Ω Ω
      H188-1 (FV) - H188-2 (FE)
      or
      B-3 - B-2      		 Always 10 kΩ or higher kΩ
      H188-1 (FV) - H188-3 (FR)
      or
      B-3 - B-1      		 Always 10 kΩ or higher kΩ
      H188-2 (FE) - H188-3 (FR)
      or
      B-2 - B-1      		 Always 10 kΩ or higher kΩ

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY. Refer to  REMOVAL [10/2022 - ]

    Result:

    OK

    See step  9

  9. CHECK HARNESS AND CONNECTOR (FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - COMBINATION METER ASSEMBLY)

    Pre-procedure1

    • Disconnect the C19 combination meter assembly connector.
    • Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      H188-3 (FR) - C19-7 (FR) Always Below 1 Ω Ω
      H188-2 (FE) - C19-25 (FE&B) Always Below 1 Ω Ω
      H188-1 (FV) - C19-23 (FV) Always Below 1 Ω Ω
      H188-1 (FV) or C19-23 (FV) - Body ground Always 10 kΩ or higher kΩ

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [10/2022 - 10/2024]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
