System Diagram [11/2017 - 03/2019]

  1. COMBINATION METER ASSEMBLY DIAGRAM

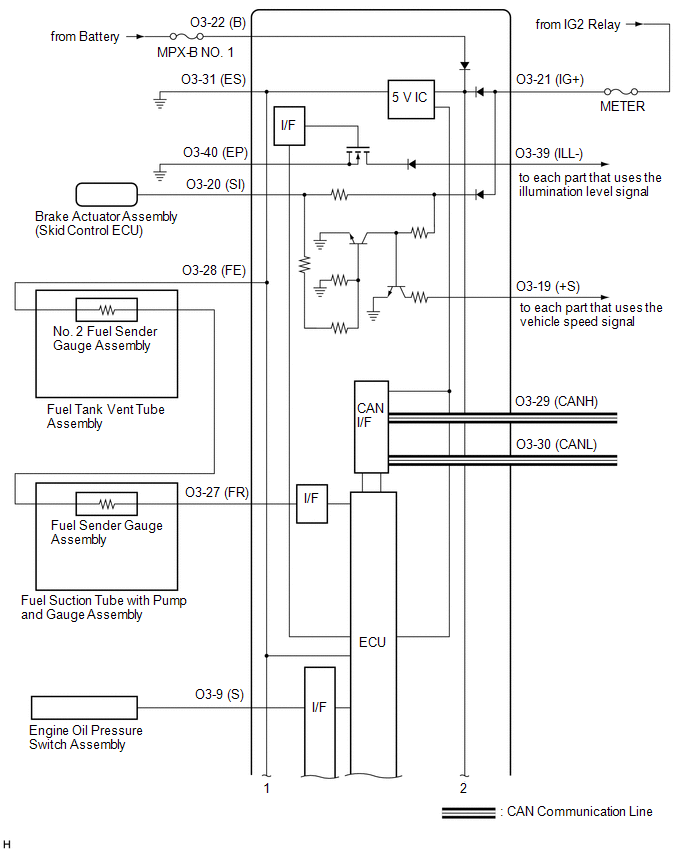

    Fig 1: Meter / Gauge System Diagram (1 Of 3)
    GTY788972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

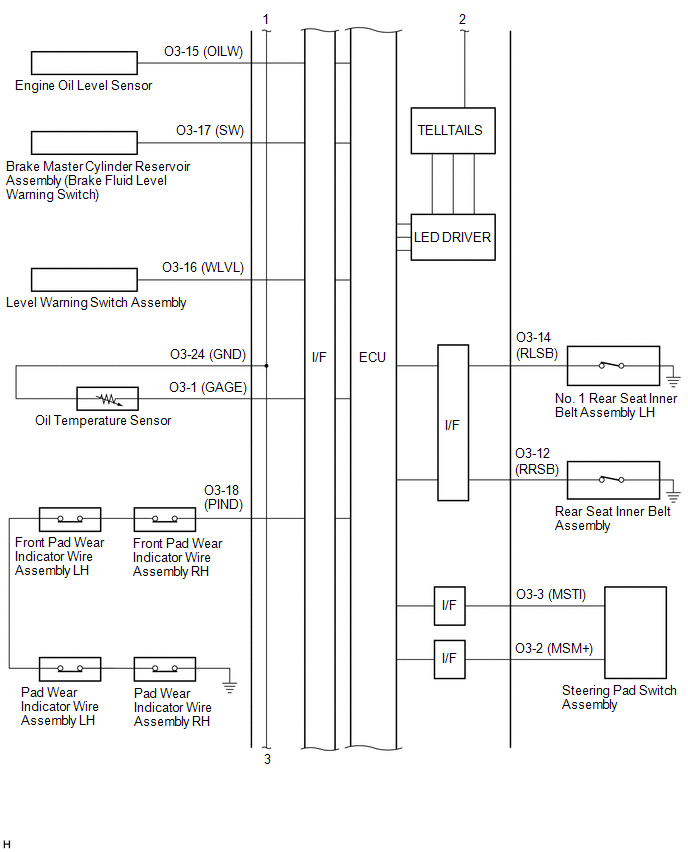

    Fig 2: Meter / Gauge System Diagram (2 Of 3)
    GTY814682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

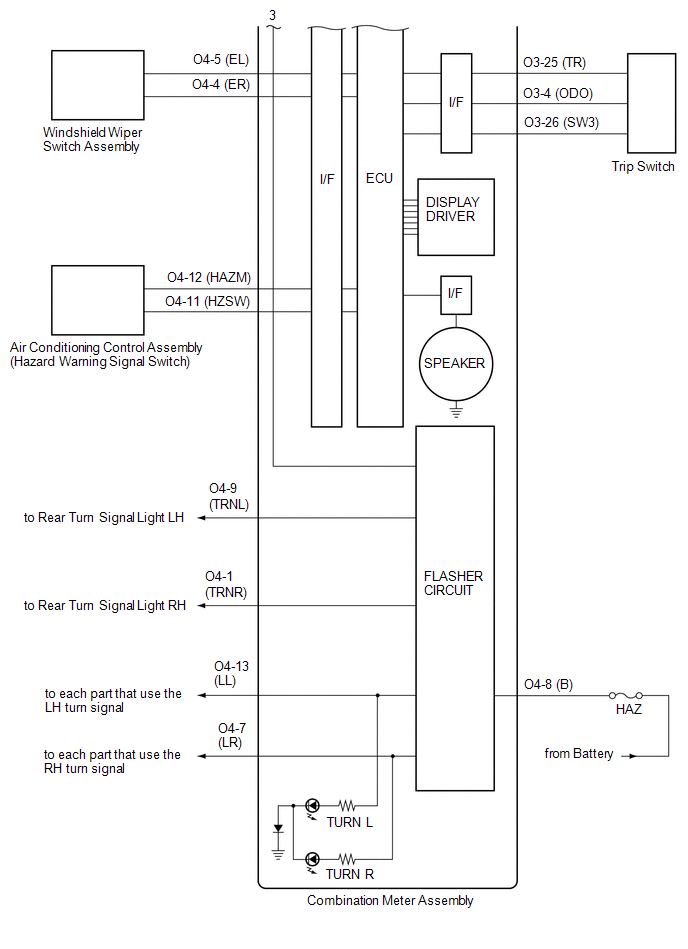

    Fig 3: Meter / Gauge System Diagram (3 Of 3)
    GTY784992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. LOCAL BUS COMMUNICATION LINE
    Fig 4: Local Bus Communication Line System Diagram
    GTY828422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
